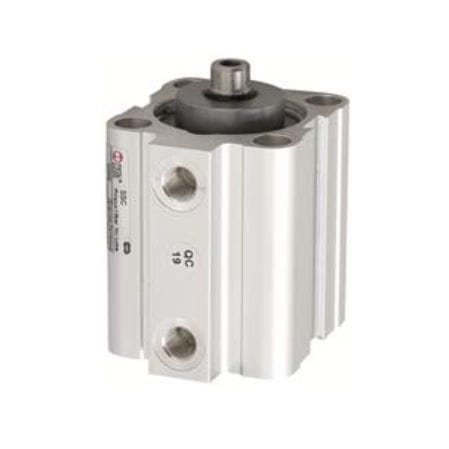

Short stroke cylinder, single-acting, Magnet, Piston Ø 12, Stroke 10, M5, Working pressure max. 10 bar, Temp. -10 °C to 80 °C

Suitable for installation in limited spaces.

Supplied with magnet.

Suitable for filtered compressed air, lubricated (ensure continuity) or unlubricated.

Parameter Name	Parameter Value
Type	pneumatic
Technology	magnetic piston
Configuration	single-acting
Applications	industrial
Other characteristics	short-stroke
Stroke (mm)	10 - 25
Pressure	Max.: 10 bar (145 psi)Min.: 0.6 bar (8.7 psi)
Bore	Max.: 63 mm (2.48 in)Min.: 12 mm (0.47 in)
Ambient temperature	Max.: 80 °C (176 °F)Min.: -10 °C (14 °F)
