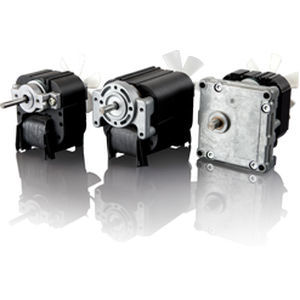

Heidrive shaded-pole motors are asynchronous squirrel-cage motors for connection to single-phase alternating current. They are characterised by high reliability, long durability and absolute freedom from maintenance. Electronic speed controls, various Motor brakes, gears and fan blades make our shaded-pole motors even more flexible and universally applicable.

Powerful and reliable shaded-pole motors from Heidrive

The shaded-pole motor has been produced at Heidrive for around 70 years. Heidrive therefore offers you a constantly optimised and high quality selection of powerful shaded-pole motors. The shaded-pole motor up to 30 W is an asynchronous squirrel-cage motor for connection to single-phase alternating current. This motor rotates in 2-pole design with a nominal speed of approx. 2,200 to 2,600 rpm at 50 Hz, whereby both clockwise and anticlockwise rotation can be mechanically implemented. Thus, well-known customers from various industries can choose between different voltages as well as various gearboxes.

In addition to high performance, our shaded-pole motor is characterised by absolute reliability, robustness, very quiet running and a long service life, especially with the ball-bearing design. Furthermore, our motors are absolutely maintenance-free. As an option, the motors are also available ventilated and combinations with gearboxes up to 2 Nm torque are possible. The shaded-pole motors enable cost-effective drive solutions in all areas of electrical engineering, mechanical engineering, equipment and apparatus construction.

Parameter Name	Parameter Value
AC/DC	single-phase
Type	asynchronous
Voltage (V)	230 - 230
Protection class	robust maintenance-free
Configuration	squirrel cage with brake shaded-pole
Number of poles	2-pole
Cooling mechanism	self-ventilated
Applications	for ventilators for medical equipment packaging machine for refrigerators
Other characteristics	with gearbox low-noise with speed controller
Power (W)	0.7 - 29.4
Torque (Nm)	0.0026 - 0.108
Rotational speed (rpm)	2200 - 2600
