BlueOptics© SFP Transceiver, LC-Duplex, 1000BASE-SX, Multi-mode Fiber, 850nm, 550M, 0°C/+70°C, DDM

Description
Manufacturers: - CBO
Category: - Transceiver SFP Duplex
Shipping weight: - 0,03 Kg
Product weight: - 0,02 Kg
Medium: - Multi-mode
Wavelength-TX: - 850nm
Original-Vendor: - BlueOptics
Connector: - LC Duplex
Reach: - 550 Meter
Speed: - 1.25G
Main-Application: - 1000Base-SX
Formfactor: - SFP
MSA-Standard: - SFP Transceiver
Wavelength-RX: - 850nm
Temperature Range: - 0°C to +70°C

Superior Performance

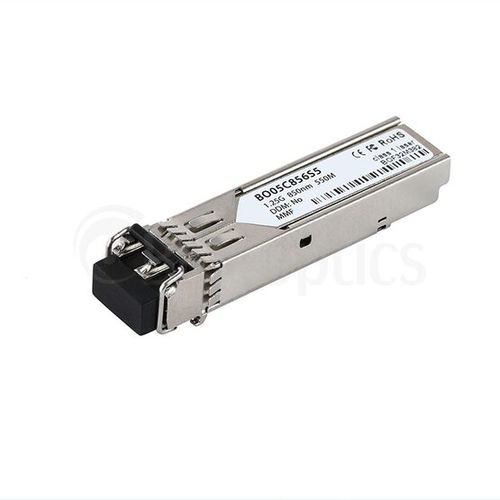

The BlueOptics© BO05C856S5 Small Form-Factor Pluggable (SFP) transceiver with LC duplex connector from CBO is designed for short-range multi-mode Gigabit Ethernet (GbE), Gigabit Fibre Channel over Ethernet (GB FCoE) or OC-24/STM8 SDH/SONET high-speed applications of up to 1.25 gigabits per second.

Wide Range of Applications
The BlueOptics BO05C856S5 SFP transceivers have a receiving function (receiver) and a transmission function (transmitter) for the transfer of optical signals via single-mode fiber, regarding the respective gigabit protocol, such as the Gigabit Ethernet 802.3z standard. BlueOptics BO05C856S5 SFP modules are suitable for the use in switches, routers, storage systems and other hardware in the second optical window at 1310nm.

Data Transmission at the Speed of Light

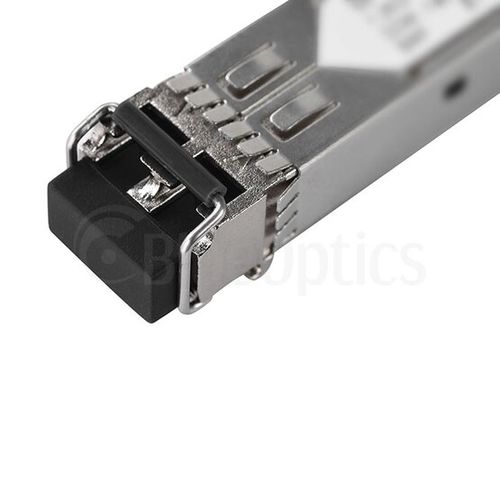

Increase your bandwidth and lower the latency. BlueOptics BO05C856S5 SFP transceivers transmit and receive signals via one optical fiber and have a duplex connector. The connection takes place via a BlueOptics Patch Cord onto a patch panel or directly to another transceiver.

Parameter Name	Parameter Value
Network	gigabit Ethernet for fiber optics
Applications	data transmission
Other characteristics	SFP high-speed multimode full duplex
