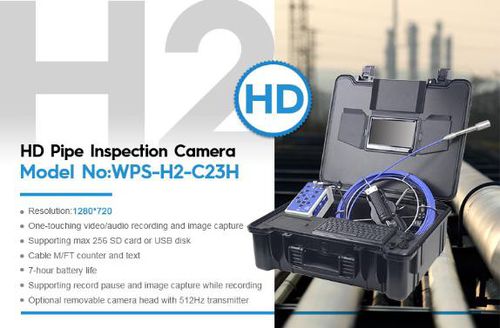

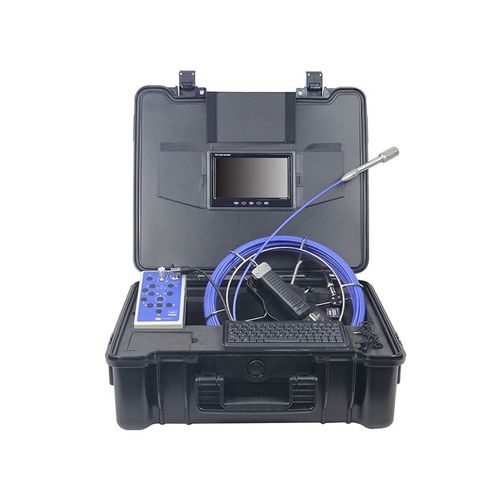

H2-C23HL 30 meters 23mm 512hz sonde Plumbing detector camera high definition system
It is widely used in pipes, drains, sewers, pipes, chimneys, machinery and building inspections.
Resolution:720*1280
One-touching video/audio recording and image capture
Supporting max 256 SD card or USB disk
7-hour battery life
Supporting record pause and image capture while recording
Optional removable camera head with 512Hz transmitter

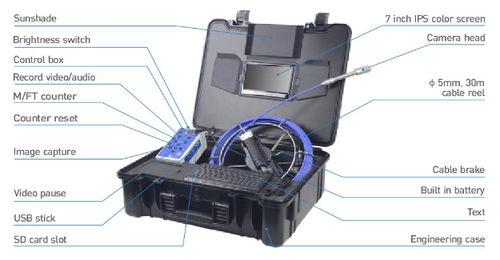

Camera & skid:
Camera size: ø23mm*144mm
Video resolution: 720*1280
Leds: 12pcs
View angle: 90°
Waterproof: IP68
Skids: 40/80mm
Suitable pipe diameter: 60-150mm
Control box:
Storage medium:
8G SD card (max 256G) &USB stick
DVR total pixels: 720*1280
Movie format:AVI
Charger time: 5 hours
Running time: ≥7 hours
Cable reel:
Cable size: ø330*110mm
Cable length: 20m
Cable diameter: ø5mm
Max length: 50m
Display screen:
Screen size: 7 inch TFT color
Screen pixels: 800*480
Case:
Size: L520*W435*H200mm
Case material:
Engineering plastic
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
for sewer
|
| Function |
spark optical emission
|
| Interface |
USB
|
| Resolution level |
high-definition
|
| Other characteristics |
waterproof
|
