FREELY PROGRAMMABLE TABLES

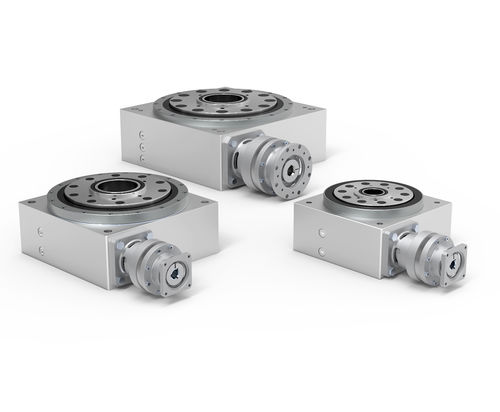

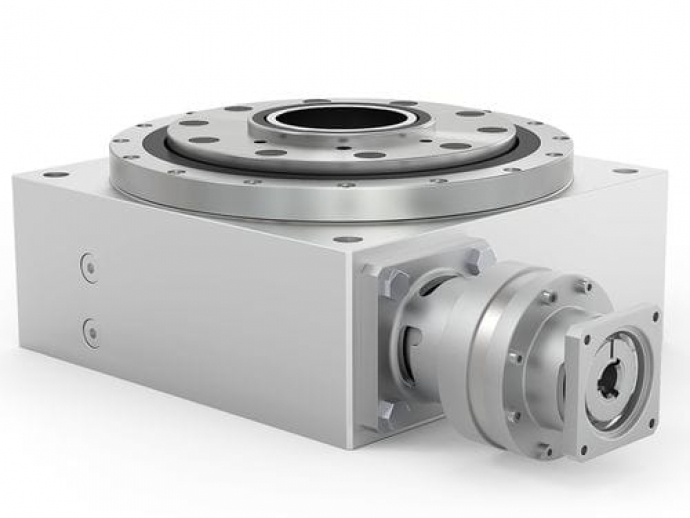

The HTR Ring Table Series are designed to provide the max. flexibility in positioning.
The large central through hole is the perfect gateway for wires and struts and the low-profile fits the table in every project. The load-bearing housing make the use easier: no extra supports or structure must be added. The squared and hollow-free design is perfect for clean-room applications where cleanness is required.

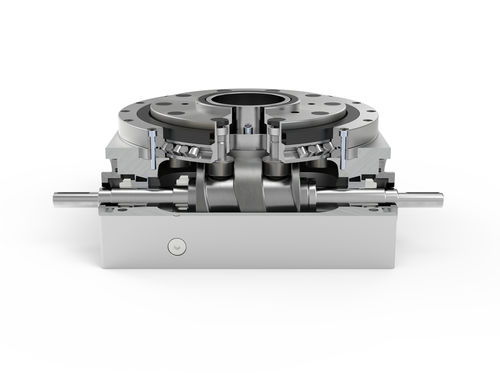

The 'friction followers' technology inside ensures a vibration-free and backlash-freerotation at high speed, high positioning accuracy and a maintenance-free long life.
The competitive price and the reduced lead time together with CDS quality and reliability make this series very attractive for the market.
Technical specifications
Number of Stops: servo-driven
Index Angle: freely programmable
Dynamic capacity: from 60 to 400+ Nm
Output motion axis bearings
- Max Axial Force: from 18000 to 56000 N
- Tilting: from 500 to 3200 Nm
Central Hole: from 35 to 85 mm
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Operation |
electric
|
| Configuration |
vertical
|
| Other characteristics |
|
