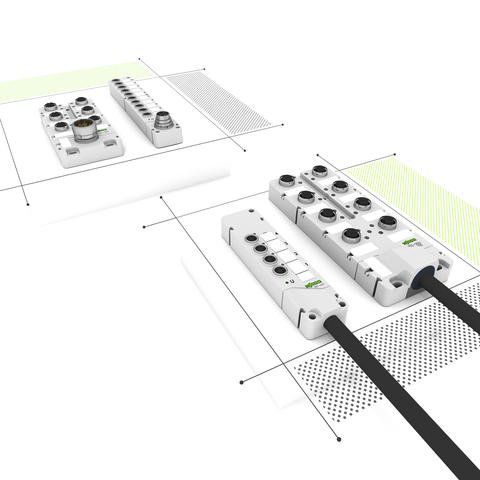

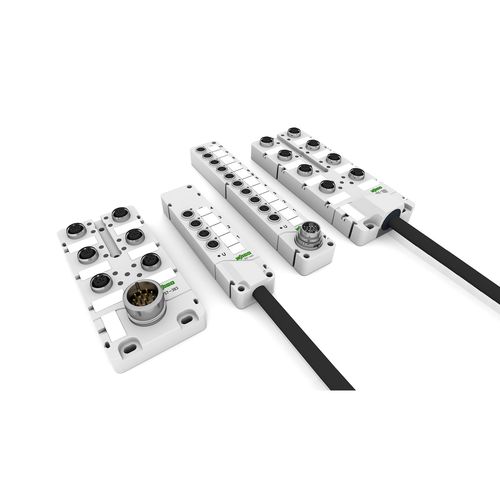

SENSOR/ACTUATOR BOXES
Sensor/actuator boxes, which are installed directly on machines or systems, are passive distribution systems for signal transmission that is rapid, cost-effective and, above all, cabinet-free. Thanks to the fully encapsulated IP67 housing, signals reach the controller reliably.
Your benefits with WAGO's sensor/actuator boxes:
IP67/IP68 degree of protection for sensor/actuator boxes with a molded interconnecting cable
Plug-&-Play Connection Technology
Fully encapsulated: Protection against dust/humidity and mechanical forces such as vibration/shock
Broad temperature range: −25 … +80°C
Spacer module for seamless installation
Signal Acquisition in Exceptionally Harsh Conditions
WAGO's sensor/actuator boxes with molded cable (72 hours at 1 m water depth) have an extremely robust design and meet both IP67 and IP68 protection standards. This design makes them ideal for applications where signals must be recorded in extreme environments (temperature, shock, vibration) without a control cabinet. They’re also excellent alternatives when the use of an active IP67 I/O system would not be cost-effective due to a low signal count or the simple signal conditions (only digital signal acquisition/output).
Plug-&-Play Connection Technology

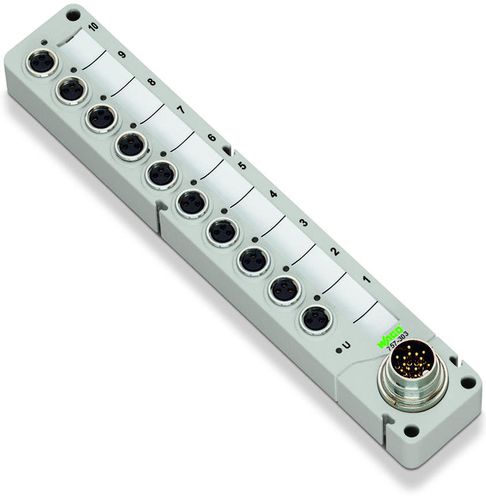

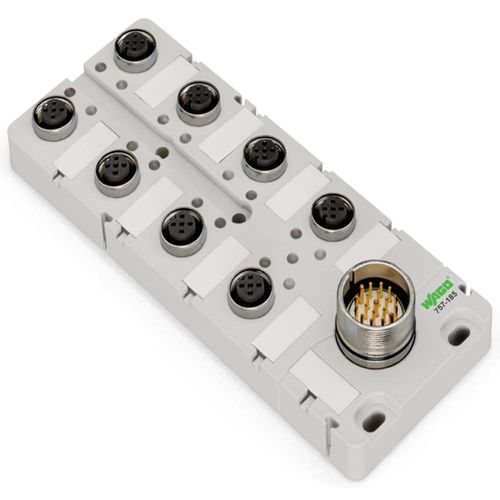

The sensor/actuator boxes with a removable connecting cable (M16 or M23 pluggable connector) are ideal for areas where frequent easy disconnection and reconnection are required (e.g., transport, modification, service).
Fixed Trunk Cable

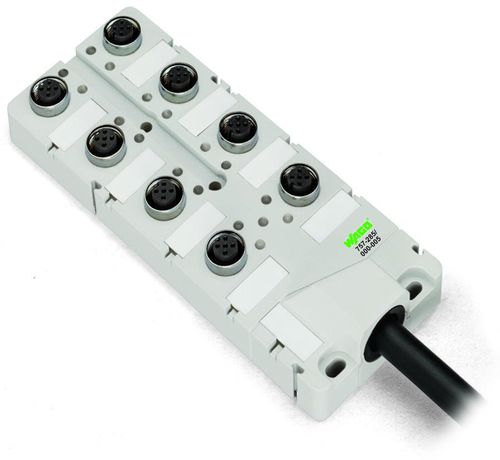

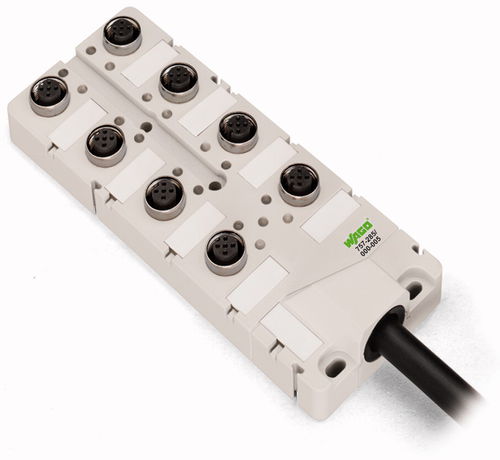

The sensor/actuator boxes with molded cables are preferred when challenging cable paths do not allow the use of preassembled M16/M23 cables.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Signal type |
analog
|
| Bus |
Ethernet
|
| Type |
distributed
|
| Applications |
for sensors
|
| Number of inputs/outputs |
8-I/O
|
| Other characteristics |
|
