Cost-efficient and energy-efficient

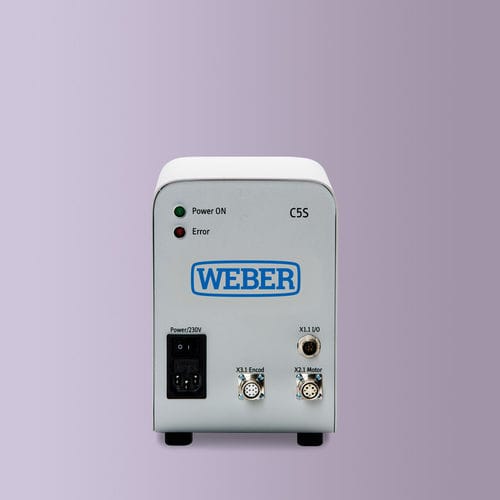

The C5S process controller executes simple screwdriving tasks. As a fully featured screwdriving controller with torque current measurement, it can be ideally complemented with the C15 and CU30 screwdriving controllers. The configurable programs can be selected and executed over a customer interface.

Robust technology in a small format
Equipped with a robust EC motor, the C5S guarantees low-wear operation over the entire service life. The analog depth sensor and the drive control based on torque current offer a number of options for configuring a variety of different screwdriving applications. Provision for a modern emergency stop and user-friendly software complete the range of features of the C5S.

15 programmes: programme selection via digital customer interface
7 diagrams with configurable screwdriving strategies
Easy integration into assembly systems
Use of analogue depth sensor for spindle
Screwdriving process control for EC servo drives with screwdriving to current torque
LED status indicators
ESD compliant design
Emergency stop option according to performance level e (Cat. 4)
USB socket for PC connection for parameterisation of the screwdriving programmes / screwdriving strategies

Parameter Name	Parameter Value
Applications	screwdriving
Other characteristics	compact
