Current control or torque/rotational angle sensor

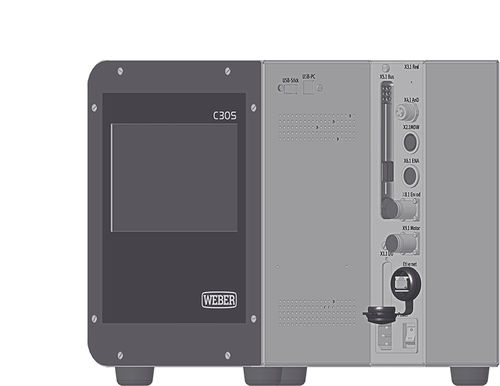

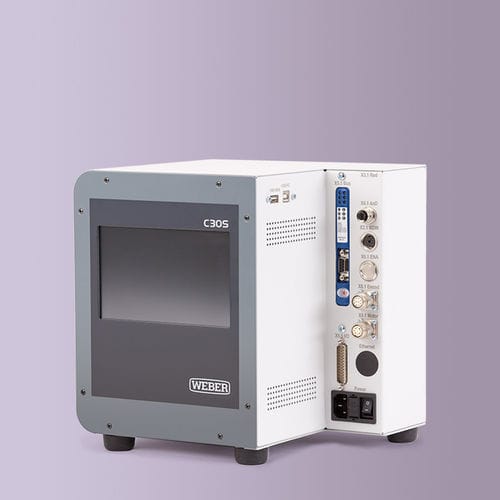

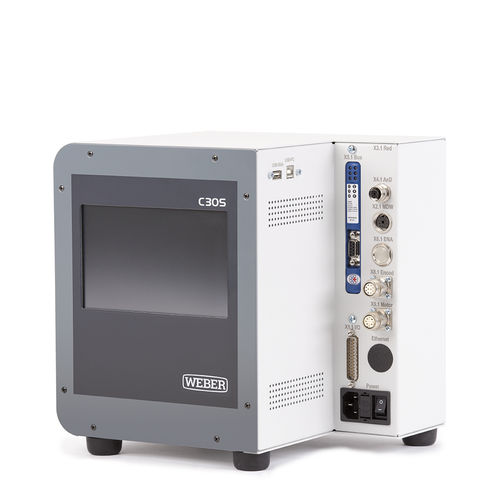

The process controller C30S was developed to solve complex screwdriving applications. A wide range of open interfaces (including digital, Profibus, ProfiNet, Ethernet IP) allow the choice of 31 programs and individually configurable screwdriving strategies. Operation is via a 7-inch touch screen. The system is supplied as process controller C30SxS with current control and as model C30SxM with torque or rotational angle sensor.
Detailed analysis possible

Various results can be read and documented via a USB/PC connection. For example, the C30S, allows you to count cycles, keep a logbook, save results and document the rolling torques. Curves are output and presented alternatively on a remote display.

Complex screwdriving applications
Screwdriving process control
Integrated 7“ touch screen
Digital interface
Fieldbus interface
External display possible
USB interface
For EC servo drives

Parameter Name	Parameter Value
Applications	screwdriving
