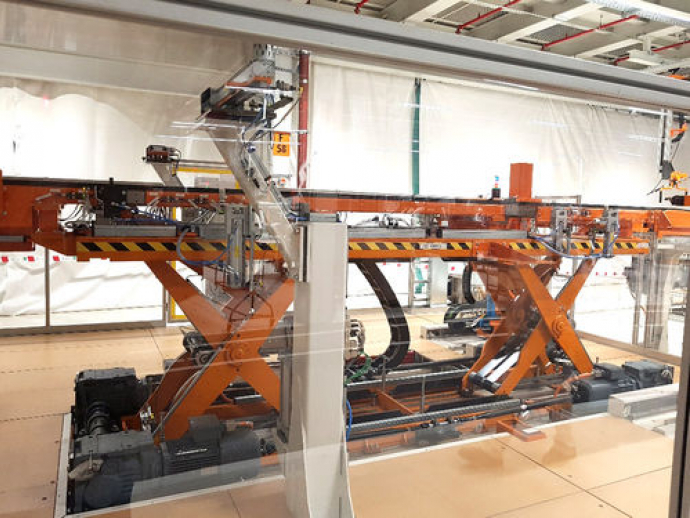

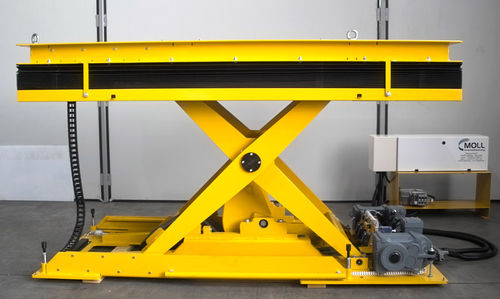

Scissors lifting tables from the MT series can be used in a variety of ways. The spectrum ranges from stationary use in personnel-secured areas to integration into mobile skillets. In order to guarantee the first prerequisite, all scissors lifting tables are available in an extension version that meets performance level d and thus guarantees the safety of the person working directly on the lifting table. All scissors lifting table models meet the requirements of DIN EN ISO 1570-1:2012-01, regardless of the extension variant. To reduce the drive torque, the patented lifting kinematics are based on a four-bar mechanism that is powered by a flat belt. The number of belts depends on the load capacity and the construction. The polyamide belts used are reinforced with steel and are designed so that even if a belt rips, emergency operation is still possible. Each belt can be tensioned separately and is monitored by a slack belt switch. Furthermore, our products have self-supporting lower frames, which allows the entire plant – depending on its size – be supported on 4-6 points. Naturally the scissors lifting tables can also be equipped with additional equipment beyond the respective basics. These include bellows or protective ground contact strips, for example.

Parameter Name	Parameter Value
Technology	scissor bellows
Type	stationary mobile
Capacity	1,500 kg, 3,000 kg (3,306.9 lb)
