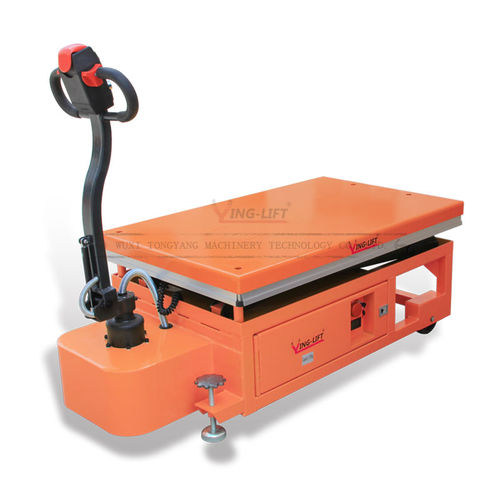

1.2T Mobile Electric Hydraulic Scissor Lift Table YLF120
1.Load capacity up to 1200kg and with 1300mm max. height;
2.REMA handle;
3.24VDC-120AH VARTA maintenance free battery;

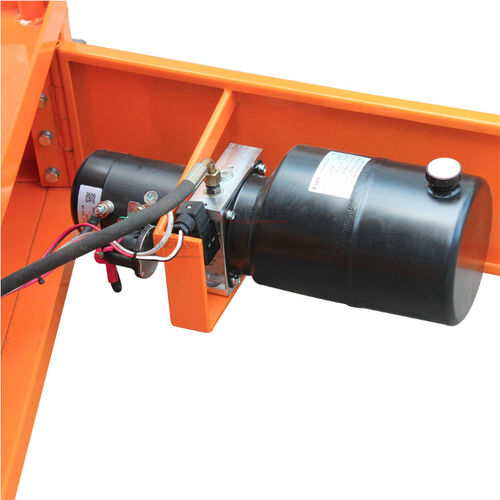

4.Step-less speed regulator and integrated hydraulic pump stations to ensure a smooth lifting powerful and high power drive;
5.Heavy duty cylinders with drainage system and anti-exploded valve to stop the lift table lowering in case of house burst;with anti-pinch and overload protection function;
6.Aluminum alloy safety bar fitted to the underside of the platform stops table from lowering in the case of an obstruction;
7.Standard：built-in charger;
8.Optional：built-out charger.
Model -
YLF120
Driving Type -
Electric
Operation Type -
Pedestrian
Capacity - kg - 1200
Turning Radius - mm - 1500
Driving wheel material -
PU
Driving wheel size - mm - φ250*80
Gradeability（laden/unladen） - % - 3/5
Brake type -
Electric magnetic
Drive Motor power - kw - 1.2
Lifting Motor power - kw - 2.2
Battery - V/Ah - 24/120
Platform Size - mm - 1300*820
Min.height - mm - 540
Max.Height - mm - 1300
Net weight - kg - 418
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Technology |
scissor
|
| Operation |
hydraulic, electric
|
| Type |
mobile
|
| Capacity |
1,200 kg (2,645.5 lb)
|
| Lifting height |
Max.: 1,300 mm (51 in)Min.: 540 mm (21 in)
|
