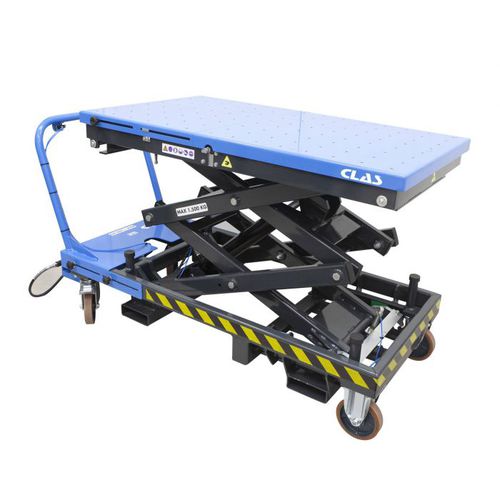

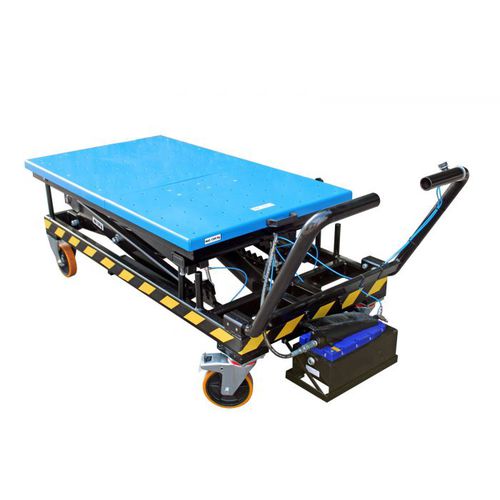

This table is specially designed for the removal and support of heavy parts not exceeding 1.5T max load, such as a battery of electric vehicles or a powertrain. Versatile, it will adapt to all your needs thanks to its many settings and optional supports on request. Due to its robust design, it has been designed to meet the needs of intensive use.

A pneumatic control system allows effortless, fast and precise control of the height. The safety is ensured by a system of pneumatically operated side racks.

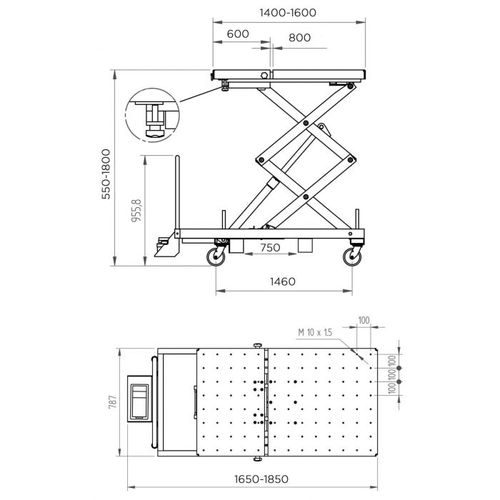

The plate unfolds for a maximum surface of 1440-1640mmx800mm, and is tapped M10x1.5 to receive various accessories allowing the removal of organs. With the help of 2 screws driven by a 17mm hexagon, it is possible to act on the flatness of the table +/- 5%, and laterally +/- 3,5cm, for a great precision of positioning.
The telescopic frame of the table from 1650mm to 1850mm allows the reception of very large batteries.
Two lateral reservations under the frame of 170mm wide spaced of 750mm, allow the transport of the table with a forklift.

Specifications:
- h. min.: 580mm
- h. max.: 1800mm
- max. height on safety catches: 1740m
- rise time (depending on the load) : 70-110 sec (example: 73 seconds with a load of 457 kg)
- lowering time (depending on the load): +- 30 sec (example: 34 seconds with a load of 457 kg)
- platform length: 1400-1600mm
- platform width: 800mm
- overall length of telescopic frame: 1650mm to 1850mm
- equipped with two wheels made of aluminium and polyurethane : 2 fixed and 2 swivel with brake
- max hydraulic pressure : 190bar
- pneumatic supply : 6-8bar
- weight : 430kg

Parameter Name	Parameter Value
Technology	scissor
Operation	pneumatic
Type	mobile
Application	for heavy loads
Other characteristics	precision
Capacity	1,500 kg (3,306.9 lb)
Lifting height	1,800 mm (71 in)
Tray length	Min.: 1,400 mm (55.12 in)Max.: 1,600 mm (62.99 in)
Tray width	800 mm (31.5 in)
Weight (kg)	400
