HW-C series lifting platforms with perimeter protection, max. height mm. 1000, load Kg. 1000-2000

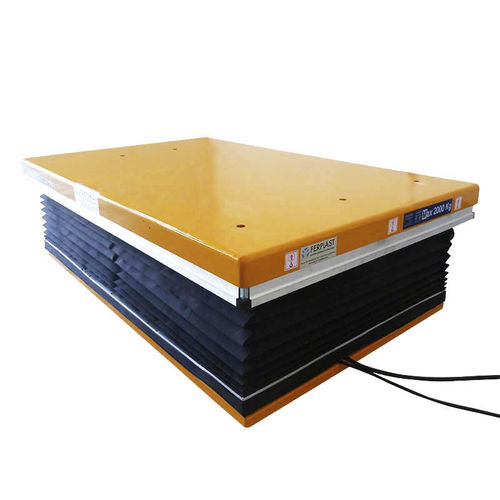

ELECTRIC LIFTING PLATFORM HW-C SERIES with perimeter protection
The lifting platforms HW-C series are lifting equipment to be installed in a fixed position and are driven by a hydraulic power pack. Manufactured according to the accident prevention, they consist of two platforms (upper and lower) and a pantograph system actuated by a hydraulic cylinder. The HW-C series is characterized by the perimeter protection bellows.

Main Features:
Very strong structure in painted steel
Construction according to CE safety standards
Upper platform in smooth metal sheet
Perimeter protection bellows
Hydraulic unit of European production, positioned internally, designed for intermittent use by 30%

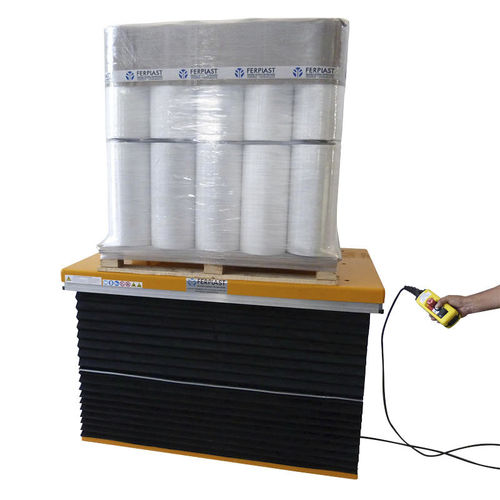

Keypad with low voltage controls
Hydraulic system with a safety valve for overload
Control valve for descent speed
Large hydraulic cylinders with valve fall arrest in case of breakage of the pipes
Antishearing safety distance between the arms of the pantograph
Joints with self-lubricating bushings
Lifting hooks removable for transportation and installation
Suitable only and exclusively for lifting goods with a uniformly distributed load

Parameter Name	Parameter Value
Technology	scissor
Operation	electric
Type	stationary
Application	loading for heavy loads
Other characteristics	with safety barrier with protective bellows for order picking
Capacity	Max.: 2,000 kg (4,409.2 lb)1,000 kg, 2,000 kg (2,204.6 lb)Min.: 1,000 kg (2,204.6 lb)
Lowered height	Max.: 230 mm (9 in)205 mm, 230 mm (8 in)Min.: 205 mm (8 in)
Lifting height	Max.: 1,050 mm (41 in)1,000 mm, 1,050 mm (39 in)Min.: 1,000 mm (39 in)
Stroke (mm)	800 - 800
Tray length	Max.: 1,600 mm (62.99 in)1,300 mm, 1,600 mm (51.18 in)Min.: 1,300 mm (51.18 in)
Tray width	Max.: 1,000 mm (39.37 in)820 mm, 850 mm, 1,000 mm (32.28 in)Min.: 820 mm (32.28 in)
Lift time	Max.: 25 sMin.: 20 s
Weight (kg)	Max.: 268
