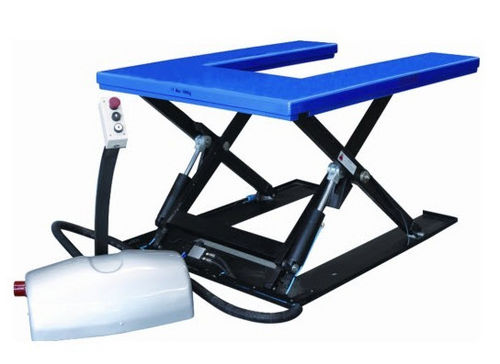

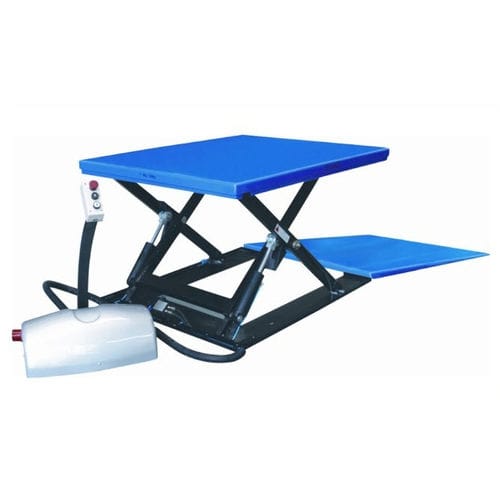

Lifting table for mounting, packaging and maintenance work

Ergonomic workplaces

Height-adjustable plattform

Special features
• Low height
• Shearing in lifting table for evenly distributed loads
• Smooth steel sheet platform in closed shape
• Use on industrial ground, without pitch
• External hydraulic unit
• All lifting tables correspond to the DIN EN 1570-1, or EC – machinery directive 2006/42/EC
• Operating voltage 400 V – 50 Hz
• Ambient temperature indoor area 0° C to +40 °C
• Maintenance supports, surrounding contact strip, line break protection, lowering brake valve

Parameter Name	Parameter Value
Technology	scissor
Operation	hydraulic
Type	stationary
Other characteristics	low-profile
Capacity	1,000 kg (2,204.6 lb)
Lifting height	760 mm (30 in)
Lift time	18 s
Weight (kg)	235
