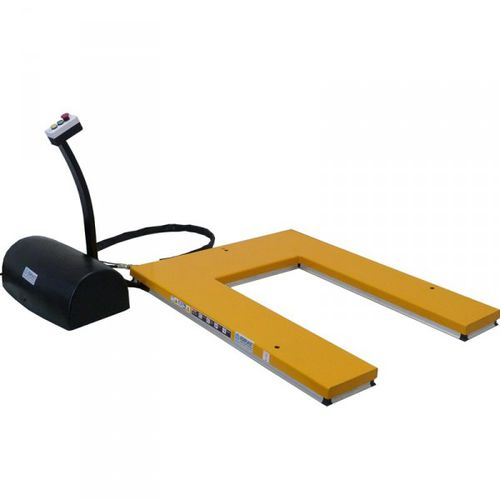

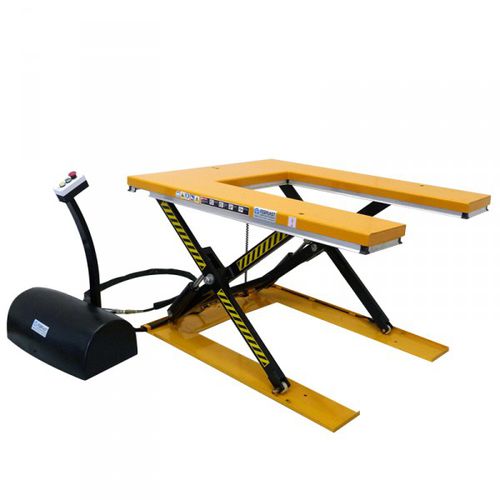

Lifting platform FPHU/FPHE 1000, single pantograph with U-profile for the insertion of the pallet, Kg. 1000

LIFTING PLATFORM FPHU/FPHE SERIES
Lifting platform single pantograph with U or E profile (FPHU/FPHE 1000) for the insertion of the pallet.

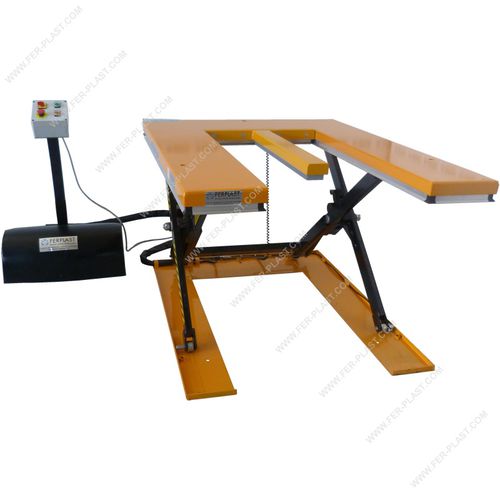

On request it is possible to make a modification to the platform transforming the profile from U to E in order to have a central support for the pallet. This variant guarantees the lifting of heavy pallets without risk of flexing.
For correct operation of the platform the load must be distributed evenly regardless of the type of profile in use.
Features:
Structure in high thickness sheet steel
Construction according to European safety standards
Electrohydraulic control unit externally positioned
Keypad with protection IP 54 positioned on the hydraulic power pack
Security aluminium perimeter on the upper platform
Hydraulic power unit designed for intermittent use by 30%.
Hand control with low voltage controls
Hydraulic system with a safety valve for overload
Control valve for descent speed
Large hydraulic cylinders with fall arrest-valve in case of breakage of the pipes
Joints with self-lubricating bushings
Lifting hooks removable for transportation and installation
Mechanical lock for maintenance
Painting with yellow RAL 1028
Passage width for the pallet mm. 585

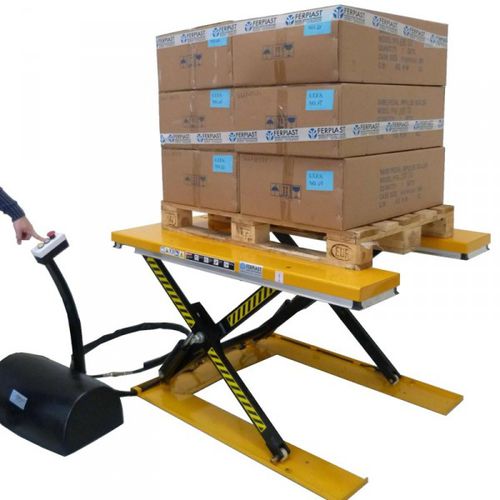

Suitable only and exclusively for lifting goods with a uniformly distributed load

Parameter Name	Parameter Value
Technology	scissor
Operation	electric
Type	stationary
Application	loading
Other characteristics	with safety barrier U-shape for order picking
Capacity	1,000 kg (2,204.6 lb)Max.: 1,000 kg (2,204.6 lb)Min.: 1,000 kg (2,204.6 lb)
Lowered height	85 mm (3 in)Max.: 85 mm (3 in)Min.: 85 mm (3 in)
Lifting height	Max.: 860 mm (34 in)Min.: 860 mm (34 in)
Stroke (mm)	775 - 775
Tray length	1,450 mm (57.09 in)Max.: 1,450 mm (57.09 in)Min.: 1,450 mm (57.09 in)
Tray width	1,140 mm (44.88 in)Max.: 1,140 mm (44.88 in)Min.: 1,140 mm (44.88 in)
Lift time	Max.: 35 sMin.: 25 s
Weight (kg)	280
