About

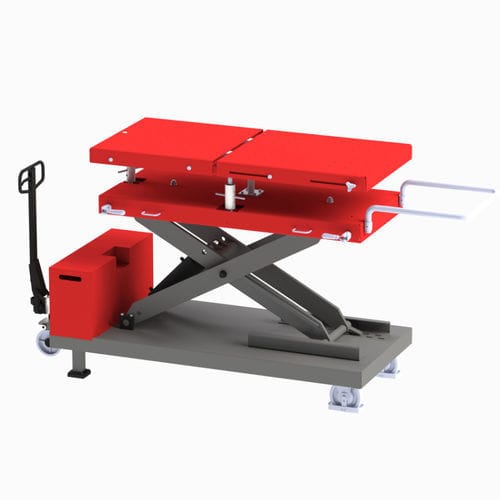

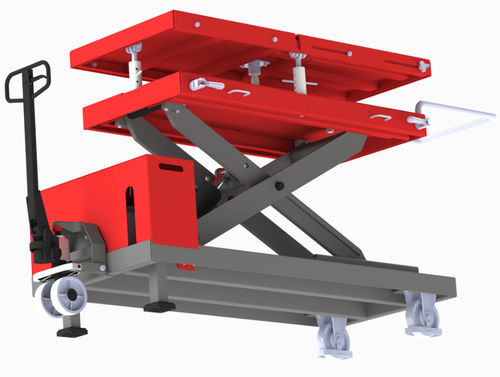

The BATPRO is a portable full-rise X-lift table that is perfect for EV battery pack replacement.
This space-saving scissor lift is ideal for handling EV batteries effectively because of its small size and mobility throughout the workshop.To elevate, lower, and move objects like a high voltage electric vehicle (EV) battery, an engine, a transmission, a seat, a fuel tank, or an axle.
Transporting items from one place to another is made easy by their portable design.
For secure handling of batteries, a range of lifting brackets are accommodated by uniform mounting holes on the top surface.
Low rolling resistance and easy maneuverability are delivered by a steering arm of the pallet-jack type.
A typical hand pendant station that enables users to remotely control the lift during all lifting activities.
Mechanism for tilting the top surface forward, backward, and sideways to more precisely align the electric batteries.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Technology |
scissor
|
| Operation |
hydraulic
|
| Type |
mobile
|
| Capacity |
2,500 kg (5,511.6 lb)
|
| Lowered height |
800 mm (31 in)
|
| Lifting height |
Max.: 1,800 mm (71 in)Min.: 800 mm (31 in)
|
| Tray length |
2,340 mm (92.13 in)
|
| Tray width |
935 mm (36.81 in)
|
| Lift time |
40 s, 45 s
|
| Weight (kg) |
850
|
