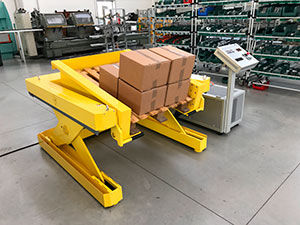

We realized a scissor lift table for a company operating in the automotive sector that needed to make more ergonomic the picking of aluminium components, from boxes, in the pre-assembly phase.

The platform was realized completely in iron and allows the load through trans pallet from the opposite side than operator.

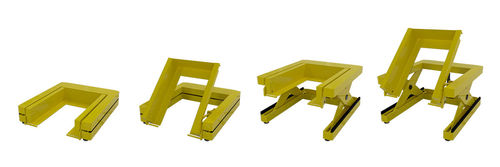

In this case the customer needed an high inclination, so we integrated the possibility to tilt the machinery up to 150°.

The requested load capacity was about 1500 kg, and because of this we added some security ballasts and a block system to avoid overturning.

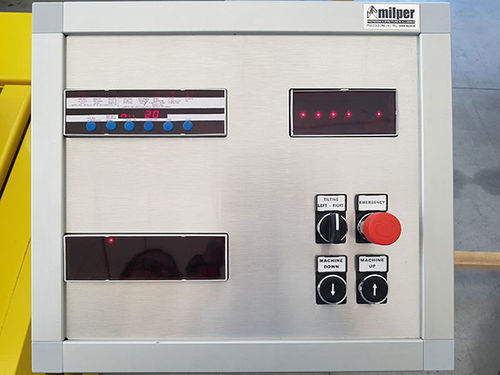

The electronic card joined to an external software allows to control all phases of the scissor lift.

We installed some load’s cells as weight’s control and an items-counter with +/-2 per thousand precision.

Parameter Name	Parameter Value
Technology	scissor
Operation	hydraulic
Type	stationary
Application	tilting
Capacity	1,200 kg, 1,500 kg, 2,000 kg (2,645.5 lb)
Lifting height	630 mm (25 in)
