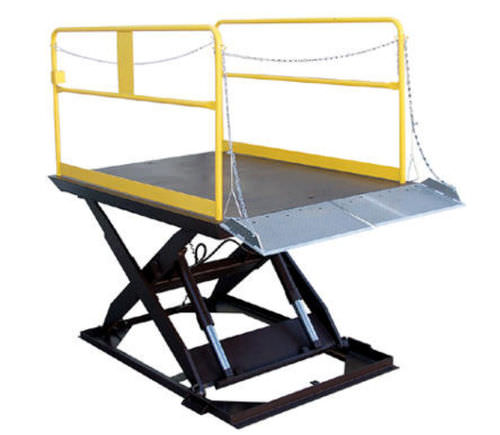

Save time and reduce man-hours where there are no docks with a Truck Scissor Dock Lift. The pit or surface mount has an optional approach ramp. Engineered and designed for maximum safety and efficiency. The checkered plate deck is made of heavy gauge steel for years of use. Hydraulic cylinders feature emergency velocity fuse if line breaks. It comes complete with upper travel limit switch and overload relief valve. The push-button control is on a 20 foot long coil cord. Pre-wired control box includes magnetic starter and overload fuse. High visibility safety yellow removable handrails with fixed toe boards are standard. Includes beveled toe-guards and electric toe-guards around perimeter of platform. External 6.5 HP 460V, 3-phase, 60 Hz motor can be located up to 8 feet away from lift (weighs 300 pounds)

Parameter Name	Parameter Value
Technology	scissor
Operation	hydraulic
Type	stationary
Application	loading dock
Capacity	5,000 lb, 6,000 lb, 8,000 lb, 10,000 lb, 12,000 lb (2,268 kg)
Lifting height	68 in, 70 in, 72 in
