About

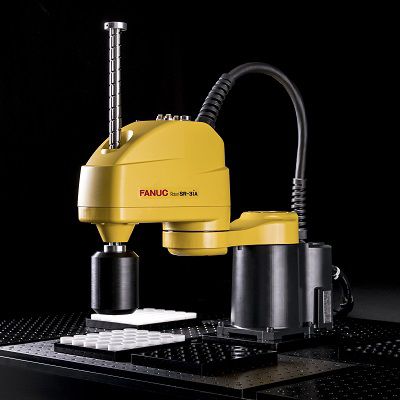

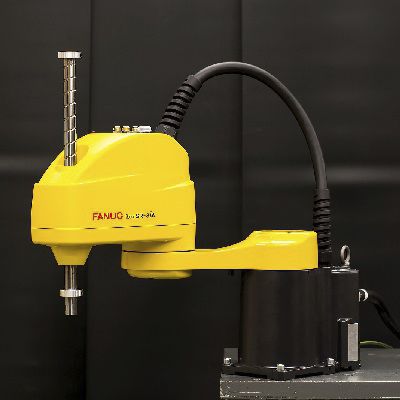

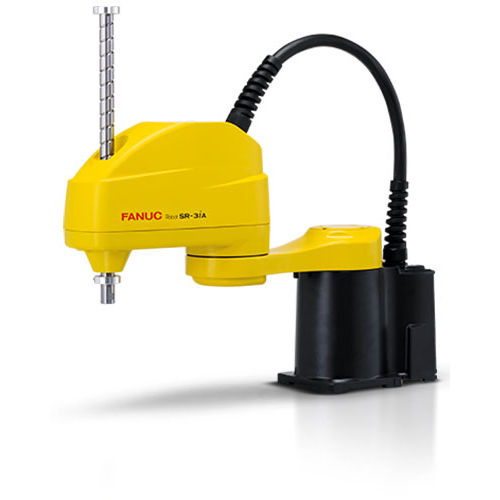

the FANUC SR-3iA is ideally suited to smaller-scale assembly, pick and place, inspection and packaging applications. Operating within a 360° envelope, the model’s lightweight design, ultra-compact footprint and integrated services minimise the risk of interference with peripheral devices.
Easy error recovery
Equipped with a brake release switch on its arm, the FANUC SR-3iA/C ensures easy error recovery.

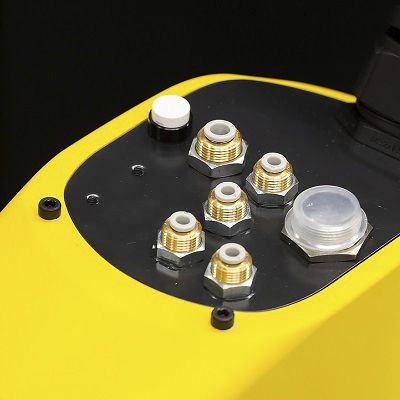

Integrated services
I/O, 24VDC, solenoid valves and air lines in the arm prevent interference and reduce costs.
Easy error recovery
Equipped with a brake release switch on its arm, the FANUC SR-3iA ensures easy error recovery.
Intuitive iRProgrammer
Dispensing with the need for a FANUC iPendant Touch, FANUC SCARA robots use iRProgrammer – a web-based interface that lets you program the robot easily and intuitively with a tablet or desktop computer.
Mounting options
The FANUC SR-3iA is also available with a bottom cable exit and wall mounting equipment options.

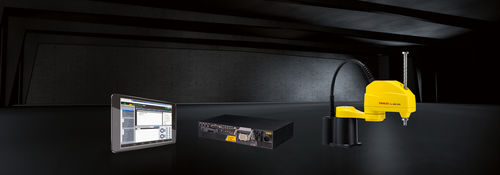

Space-saving controller
Featuring intelligent functions such as iRVision, iRPickTool or conveyor tracking, the new R-30iB Compact Plus controller makes best use of limited space.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
SCARA
|
| Number of axes |
4-axis
|
| Function |
|
| Mounting |
floor-mounted
|
| Other characteristics |
compact
|
| Payload (kg) |
3 - 3
|
| Reach (mm) |
400 - 400
|
| Repeatability (mm) |
0.004 - 0.01
|
| Operating temperature (°C) |
0 - 45
|
| Noise level (dB) |
70 - 70
|
| Weight (kg) |
19
|
