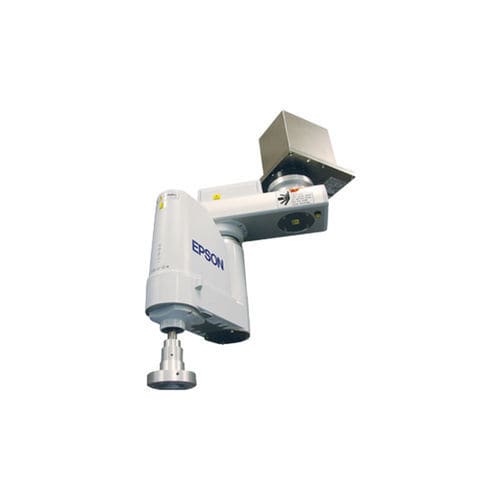

A new species of SCARA
An extremely compact and versatile ceiling-mounted SCARA robot, ideal for narrow production cells.
The Spider RS3-Series is a new species of four-axis SCARA robot, designed like a human arm, to work on horizontal planes. It's ideal for fast pick-and-place applications and assembly processes.

Cylindrical envelope

The RS3 is the first and only SCARA robot with a perfectly cylindrical envelope, meaning it can reach 100 percent of its area of activity, maximising productivity and minimising space requirement. The RS3 has a 350mm arm capable of working on pallet sizes which would normally require a SCARA arm almost 750mm in reach.
Compact high performance

RS3-Series Spider robots offer performance among the best in the industry, with cycle times as low as 0.34 seconds, even during extended use. A unique high-rigidity arm design means very low residual vibration, with smooth start and stop motion, even at high speeds.
Outstanding versatility

Spider RS3-Series robots can be used in a huge range of industries, from assembling automotive components, mobile phones and computer parts, to creating medical equipment and packaging medications, not to mention lab automation and scientific analysis.
Key Features

Versatile Spider robot Ideal for fast-paced pick-and-place tasks in compact cells
Cylindrical envelope Can make use of 100 percent of its work area
Short cycle times Cycle times can be as low as 0.34 seconds, even during extended use
Fully integrated Complete Epson solution including robot, controller and software
Versatile and flexible An ideal solution for applications from automotive to pharmaceutical



PARAMETERS

Parameter Name Parameter Value
Type
  • SCARA
  • spider
Number of axes
4-axis
Function
  • for assembly
  • packaging
  • pick-and-place
Mounting
ceiling-mount
Other characteristics
compact
Payload (kg)
4 - 4
Reach (mm)
350 - 750
Weight (kg)
17
