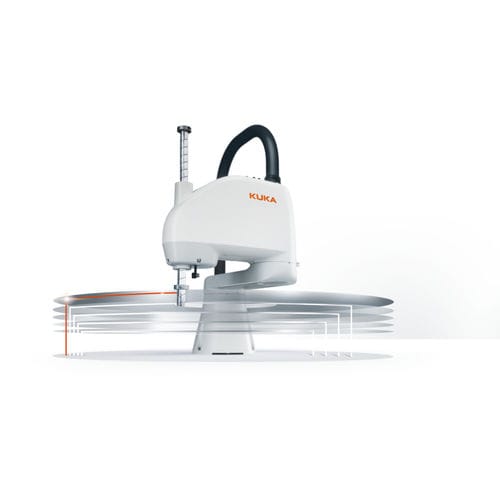

Strong, fast, highly efficient. Whether small parts assembly, material handling or testing - the ultra-compact KR SCARA robots deliver maximum efficiency and economy right from the start. With a variety of integrated media supply systems, they can handle almost any task out of the box.

KUKA SCARA robots designed for maximum efficiency in all parameters

The KR SCARA robots make automation easier and sustainably more economical, even in extremely cost-sensitive markets. Equipped with intelligent features, KUKA offers you a uniquely attractive overall package in its class: light and slim, with a payload capacity of 6 kg, yet extremely fast and powerful.

• Shortest cycle times
Peak value of up to 0.36 sec cycle time for 500 mm and 0.38 sec for 700 mm range
Low TCO
• - Low maintenance
• - Low energy consumption
• - Low investment costs

Safe and reliable
• - System with new KRC control guarantees high reliability
• - Certified for high safety in working environment and meets CE requirements
Ultra-compact
• - Compact design with low weight
• - Minimal footprint
• - Fits into tiny work cells

KUKA SCARA industrial robots for assembly and joining tasks and pick & place applications

The KR SCARA robots have an internal media supply for air, power and data. This is a complete package for smart integration of peripheral devices and rapid adaptation of the SCARA robot to almost any desired application. Whether small parts assembly, material handling or testing - the KR SCARA robots are flexible in installation, highly precise in their movements and easy to maintain. Esd protection ist optional possible.

Parameter Name	Parameter Value
Type	SCARA
Number of axes	4-axis
Function	handling for assembly packaging pick-and-place palletizing painting test for bonding spraying measuring
Mounting	floor-mounted ceiling-mount
Application domain	for clean rooms for small parts
Other characteristics	compact short cycle time hygienic
Payload (kg)	6 - 6
Reach (mm)	500 - 650
Repeatability (mm)	0.02 - 0.02
Operating temperature (°C)	5 - 40
