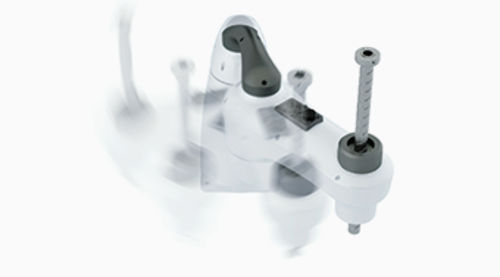

High-speed motion
High acceleration & motion profiles.
Improved cycle per minute allows the robot to move at high speed continuously.
Continuous motion

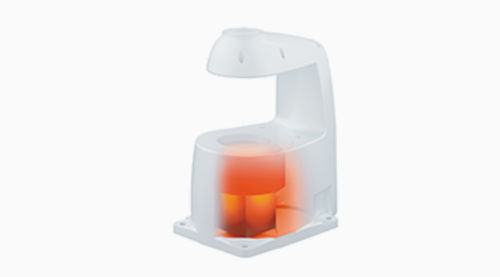

Improved heat dissipation performance at the base unit allows the robot to achieve continuous motion.
Vibration control
The robot can suppress vibrations in a short time by actively reflecting the status of the arm to vibration control.
Light weight
The combination of between high rigidity and light weight allows to achieve a high payload (8kg) and high-speed motion at the same time
Mounting possibilities

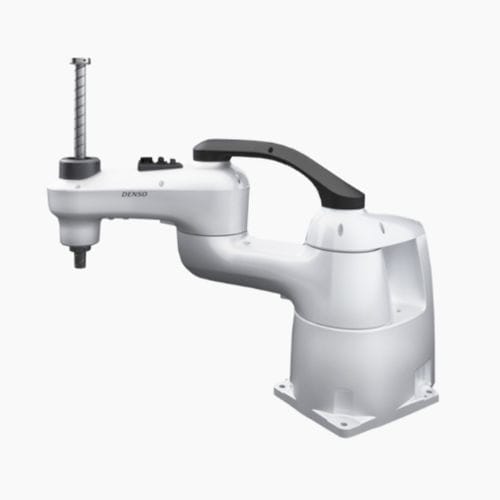

Floor-mounted

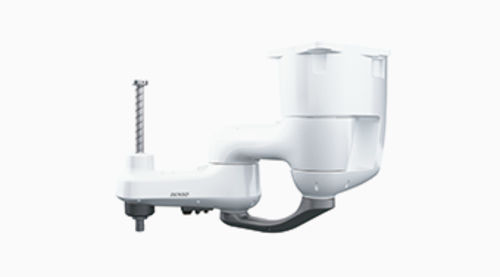

Ceiling-mounted
Optimum layout
A large-capacity motor is integrated into the base unit.

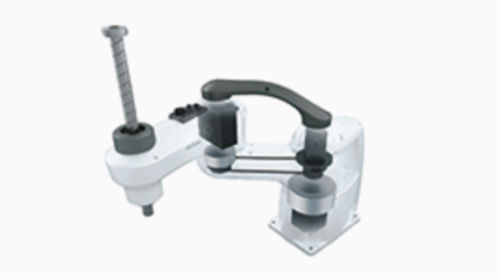

Weight reduction at the tip of the arm and optimized arm structure allow the robot to improve its high-speed performance.
Low maintenance
Lifetime grease lubrication
The HSR Series delivers high-performance during continuous operation over long periods thanks to a reengineered and improved design that makes the robot arm ligther, stronger and faster.
As a result of pursuing high-speed performance, high-speed picking systems can be realized with small, space-saving robots not only in conventional parts assembly processes, but also in packaging processes of food, medical supplies, and cosmetics, which is bringing about a revolution in performance.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
SCARA
|
| Number of axes |
4-axis
|
| Function |
|
| Mounting |
|
| Application domain |
|
| Protection level |
IP65
|
| Other characteristics |
high-speed
|
| Reach (mm) |
480 - 550
|
| Repeatability (mm) |
0.01 - 0.012
|
| Noise level (dB) |
80 - 80
|
| Weight (kg) |
31
|
