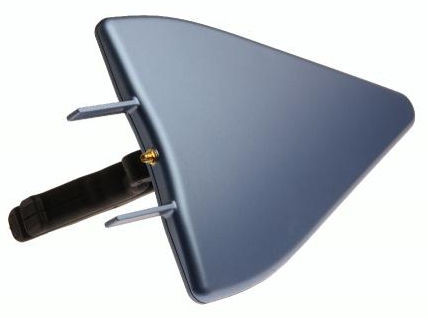

Satellite antenna HyperLOG

Satellite antenna HyperLOG

Satellite antenna HyperLOG

About


Because of the flat gain response the LPDA offers a very simple power (dBm) to field strength (V/m or W/m²) conversion if connected to a test receiver or spectrum analyzer. The small beam width of the test antenna offers a high directionality to easily pinpoint the radiating RF source under test.

Testing
Every HyperLOG EMC Test-Antenna goes through rigorous testing in our laboratories before dispatch and is equipped with a high quality GOLD COATING, a high-tech antenna-case (radome) which offers protection against mechanical damage and environmental influence, a top-quality integrated tripod connection and an SMA connector (18GHz version) with twist protection.

Exhaustive Calibration data
All Aaronia compliance antennas include a complete high resolution (10MHz steps!) calibration data set with up to 533 calibration points (on CD). This offers the ability to make a very accurate EMC measurement with any Spectrum Analyzer.



PARAMETERS

Parameter Name Parameter Value
Network
satellite
Type
log-periodic
Other characteristics
mobile
Frequency (Hz)
680000000 - 18000000000
