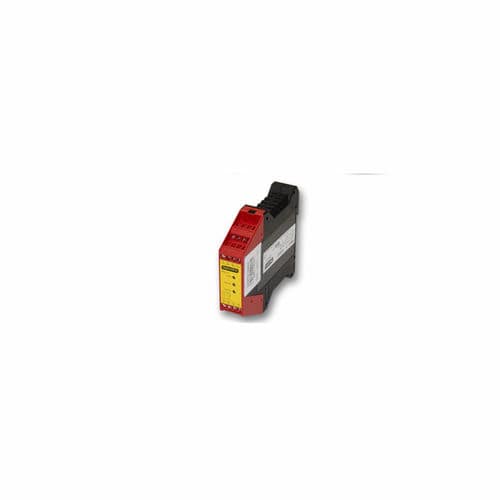

Safety relay PRSU/4, PRSU/5

Safety relay PRSU/4, PRSU/5

Safety relay PRSU/4, PRSU/5

About


PRSU/4 and PRSU/5 safety controllers can be used as safety devices for high-risk automation and machine control applications. These safety interface modules provide the highest level of safety offered by Tapeswitch, exceeding the requirements of category 3 as defined by
EN 954-1. They also meet or exceed the safety content of the applicable OSHA, ANSI, and RIA Standards.

The PRSU/4 and PRSU/5 safety interface modules have redundant safety output relays, are self-monitoring, and are rated Control Reliable, which means that any fault in the safety-critical components will be detected and the machine will be rendered inoperative until the fault is corrected. They are available in a DIN rail-mounted package. The PRSU/4 Safety Controller operates from a 24 VDC or VAC power supply. The PRSU/5 Safety Controller operates from a 115 VAC power supply. Both models feature user-configured manual and automatic reset capability.



PARAMETERS

Parameter Name Parameter Value
Measured/monitored value
safety
Contact configuration
1 NC, 3 NO
Mounting
DIN rail
Other characteristics
modular
