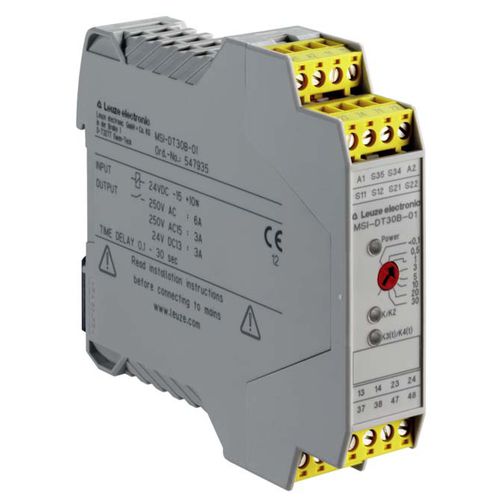

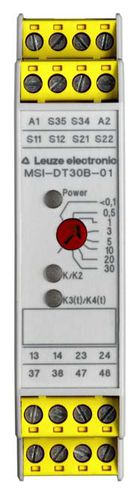

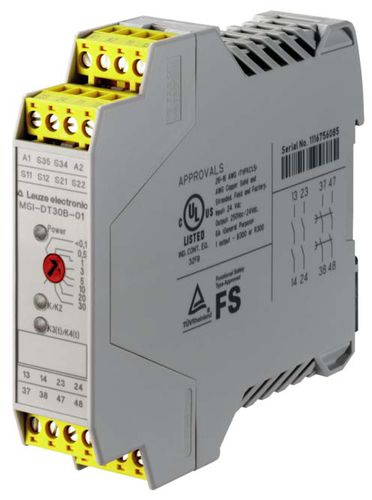

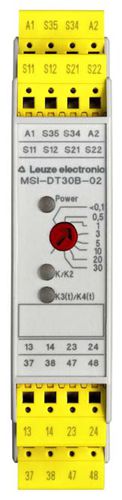

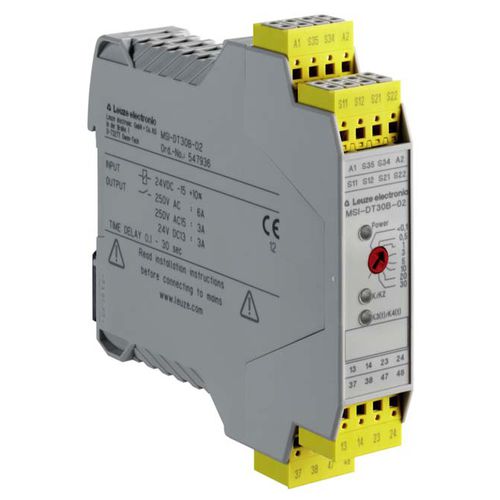

Safety relay MSI-DT30B-01

Safety relay MSI-DT30B-01

Safety relay MSI-DT30B-01

About


unctions - Cross circuit monitoring
One- or two-channel operation
Start/restart interlock (RES)
Time-delayed shutdown (STOP1)
Restart - Automatic
Manual
SIL - 3, IEC 61508
SILCL - 3, IEC/EN 62061
Performance Level (PL) - e, EN ISO 13849-1
MTTFd - 124 years, EN ISO 13849-1
PFHD - 1,8E-09 per hour
Mission time - 20 years, EN ISO 13849-1
Category - 4, EN ISO 13849-1
STOP category - 0, IEC/EN 60204-1
B10d at DC13 (inductive load) - 400,000 number of cycles
B10d at AC15 (inductive load) - 400,000 number of cycles
Protective circuit - Short circuit protected
Continuous current per current path, max. - 6 A
Supply voltage UB - 24 V, AC/DC, -15 ... 10 %
Power consumption, max. - 1.8 W, For 24 V, plus output load
Number of outputs, safety-oriented, undelayed, contact-based - 2 Piece(s)
Number of outputs, safety-oriented, delayed, contact-based - 2 Piece(s)
Number of outputs, signaling function, undelayed, contact-based - 0 Piece(s)
Max. thermal continuous current Ith, release current paths - 6 A
Number of inputs - Piece(s)
Executing the switching function of the inputs - Changeover
Nominal output voltage DC - 24 V
Voltage permitted at the input - 30 V
Test pulse time permitted tTP - 1 ms
Release time tR - ms
Release time tR, time-delayed contacts (tolerance) - 0.1 s ... 30 s ± 40 %
Regression delay - 20 ms
Number of connections - 1 Piece(s)
Function - Connection to device
Voltage supply
Type of connection - Terminal
Type of terminal - Screw terminal
No. of pins - 16 -pin
Connection cross sections - 1 x 0.2 to 2.5 mm², wire
Dimension (W x H x L) - 22.5 mm x 99 mm x 114.5 mm
Housing material - Plastic
Plastic housing - Unreinforced polyamide PA



PARAMETERS

Parameter Name Parameter Value
Measured/monitored value
safety
Contact configuration
2 NO
Network
AC/DC
Applications
emergency stop
Mounting
DIN rail
Norms
IEC, SIL
Other characteristics
time delay
Tripping current
6 A
Trigger voltage
24 V
