About
• Voltage Range: AC/DC 12V,24V,48V,110V,AC230V • Number of Contact: 1×SPDT, 2×SPDT,3×SPDT • Current Rating: 16A/AC1, 8A/AC1

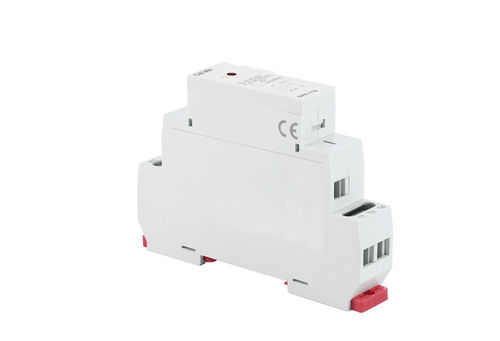

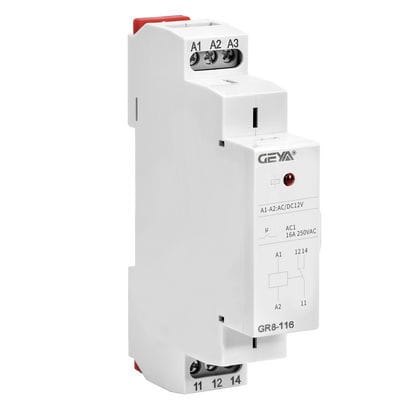

GEYA Intermediate Relay is used for switching larger load output, strengthen or multiplying contacts of the existing device.
It is mainly used in the control circuit of AC 50 Hz, rated operational voltage up to AC 380V or DC 220V, to control various electromagnetic coils, thus to expand the signal or send signals to the relevant control elements concurrently.
GEYA Intermediate Relay has 10A switching capability, suitable for high-density mounting. It is a highly efficient magnetic circuit for high sensitivity and an environmentally friendly product.
Our Intermediate Relay is suitable for the battery or the rectification power and supplier’s power using for handling drawing the pump motor and another electronic vehicle.
With a small current switch control of high-current electrical appliances, operating to reduce the risk factor.
Applications
• intermediate relay used for switching larger load output, strengthen or multiplying contacts of the existing device.
Function Features
• Voltage range: AC/DC12V,24V,48V,110V,AC230V.
• Relays GR8-316 enable connection to a 3-phase circuit.
• Relay status is indicated by LED.
• 1-MODULE,DIN rail mounting.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured/monitored value |
safety
|
| Contact configuration |
SPDT
|
| Network |
AC/DC
|
| Mounting |
DIN rail
|
