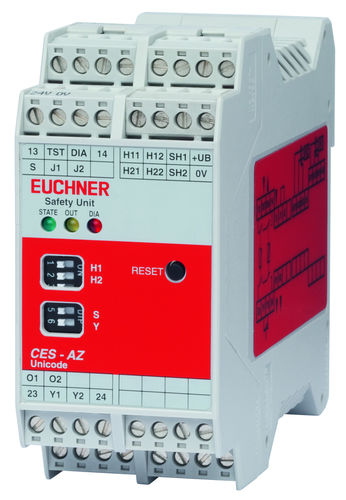

Evaluation unit CES-AZ-AES-01B (for 1 read head)
• 1 read head can be connected
• 2 safety outputs (relay contacts with 2 internally connected NO contacts per output)
• Start button and feedback loop can be connected
• Unicode
• Plug-in connection terminals
• Category 4 / PL e according to EN ISO 13849-1
Unicode evaluation
Each actuator is highly coded (unicode). The evaluation unit detects only actuators that have been taught-in. Additional actuators can be taught-in.
Only the last actuator taught-in is detected.
New actuators are taught-in by fitting a jumper.
Guard lock monitoring

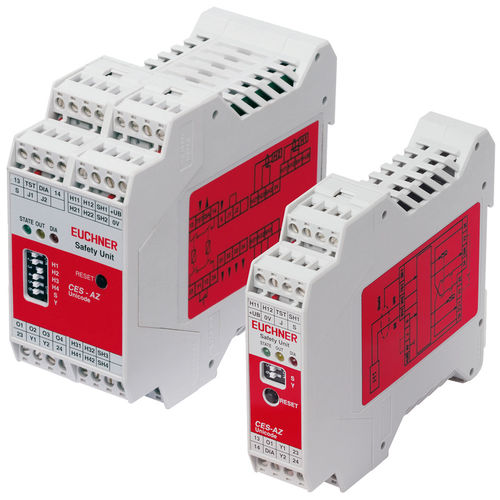

Evaluation units in the series CES-AZ make it possible to use read heads with integrated guard locking for the protection of personnel during overtraveling machine movements. You will find suitable read heads in the accessories.
Category according to EN ISO 13849-1
Due to two redundant safety paths (relay contacts) with 2 internal, monitored normally open contacts per safety path, suitable for:
Category 4 / PL e according to EN ISO 13849-1
Each safety path is independently safe.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured/monitored value |
safety
|
| Applications |
emergency stop
|
| Mounting |
DIN rail
|
| Tripping current |
100 mA
|
