•Up to 4 safety functions can be implemented in one device
•The number of safety outputs (relays) can be set according to the individual requirement, making this a cost-effective solution.
•Increased functionality using less space in the switch cabinet.
•The units are tamper-proof as are pre-configured during ordering.
•Cost-effective and reliable by unique identification of configuration for maintenance, commissioning and service
•Can be perfectly adapted to your application through various configuration options, offering maximum flexibility
•Additional sensors can be connected via elobau interfaces for input expansion
Logic link:
-
Safety functions:
AND - tON / tOFF
OR - Safetyfunction
XOR - 2-hand
NAND - Safetygate
NOR - E-stop
XNOR - N.O./N.O.
NOT - or N.O./N.C.

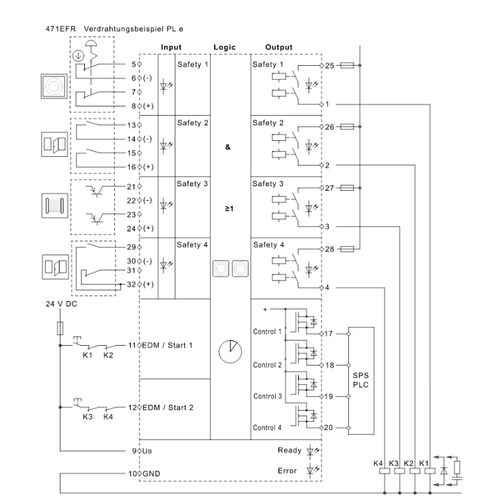

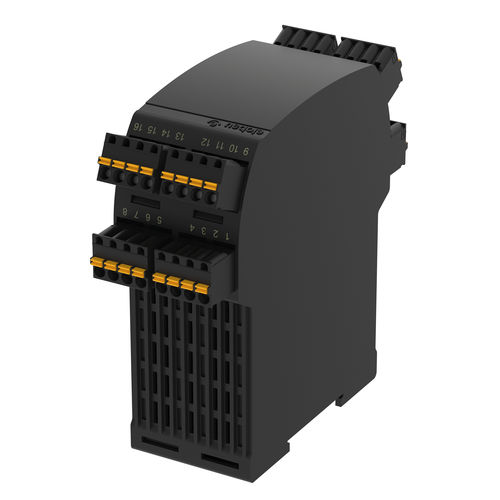

eloFlex 471 EFR… is a configurable safety relay with 4 independent safety inputs (2-channel) and up to 4 safety outputs as well as 4 control outputs.

Parameter Name	Parameter Value
Measured/monitored value	safety
Other characteristics	configurable
Trigger voltage	24 V
