About
Interface - 3 wire OSE

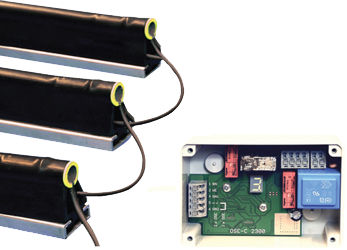

Technology - Optical Contact Edges in Series Connection
Transmitter Cable Length - 10.5 m (34.4 ft)
Receiver Cable Length - 3.0 m (9.8 ft)
Supply Voltage - 4 - 28 V DC
Safety Properties - Cat. 3 PL d (EN ISO 13849-1)
MTTFd - 56 years
DCav - 91%
PFHd - 1.8*10^-7 / h
Maximum Operation Period - 20 years

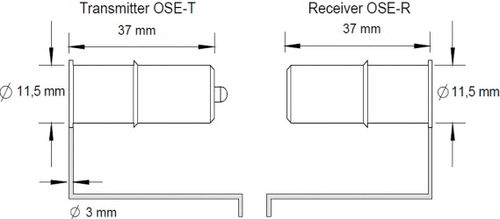

Housing Dimensions WxHxD - 37x11 mm (1.46x0.43")
Operation Temperature - -20 °C to +75 °C (-4 °F to +167 °F)
Protection Class - IP68
Cable Layout - PVC / PVC, tinned ends
Version - V6 (suitable for battery systems)
Diameter - 11 mm (0.43 ")
Weight - 0.38 kg
Range - 0.5 m - 10 m (1.6 ft - 32.8 ft)
Sealing Compound - Polyurethane (Transmitter: Grey, Receiver: Black)
Housing Material - Polyethylene
Unit of Measure - Piece
Product Life Cycle - Established
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
for safety edges
|
| Mounting |
for integration
|
| Other characteristics |
compact
|
