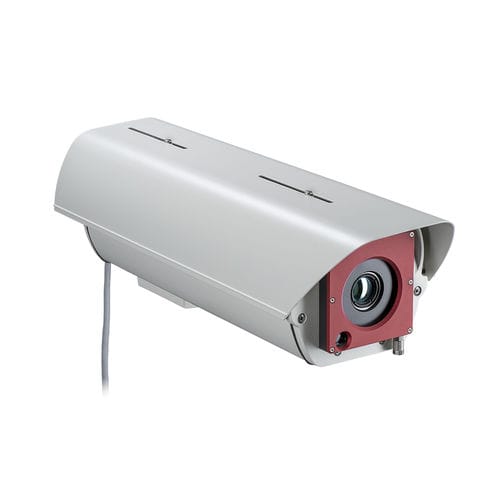

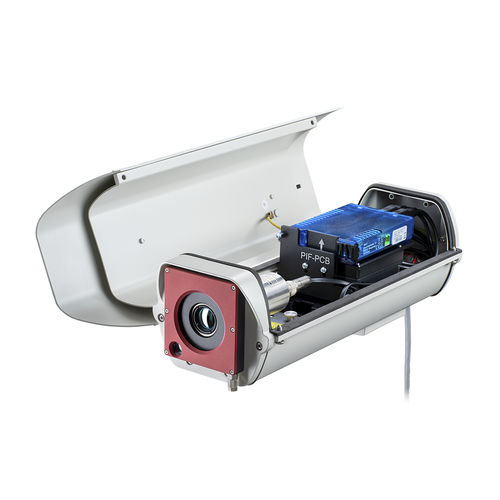

This new dedicated product package consists of a Xi 400 imager, a VIS camera and the USB Server – all pre-assembled into the Outdoor housing. This package is completed by an wall mount.

The redesigned outdoor protective housing from Optris contains a built-in heater/fan allowing the housing to operate at temperatures ranging from -40 °C up to 50 °C without affecting the measurement accuracy.

The Xi 400 has a 80 Hz frame rate that allows for the monitoring of fast thermal processes. The spot finder IR camera has an optical resolution of 382 x 288 pixels.

While HD VIS camera has a resolution of 1280 x 720 pixels, 30 Hz frame rate and 65° field of view, the VIS camera is an ideal supplement for combined thermal and visual condition monitoring or early fire detection applications.

Important specifications

• Dedicated for outdoor condition monitoring and fire detection
• IR camera with 382 x 288 px
• HD VIS camera with 1280 x 720 px
• USB-Server Gigabit (PoE) for easy integration of both cameras
• Environmental rating IP66

Technical details of the optris Xi 400 CM

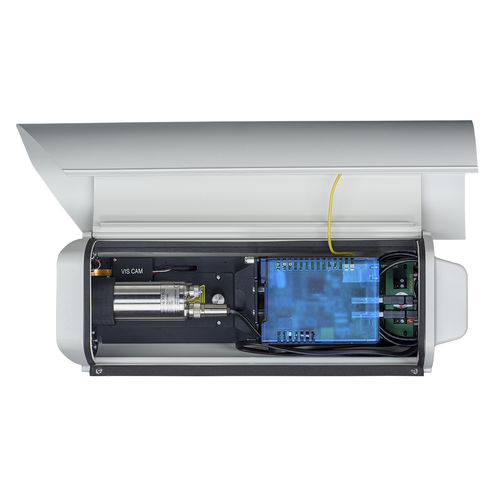

• Scope of supply:
Outdoor protective housing
Xi 400 IR camera
HD video camera
Air purge collar
USB Server Gigabit
Wall mount
Specifications Outdoor protective housing

• Environmental rating: IP 66
• Operating Temperature range: -40 °C … 50 °C
• Heating: PTC heater (starts automatically at T < 15 °C) /
Fan for homogeneous temperature distribution
• Power supply: 24 V DC
• Power: 70 W
• Current draw: 3A (short term: 6 A)
• Air purge collar: Integrated

Parameter Name	Parameter Value
Applications	rugged fire detection
Technology	digital
Function	monitoring
Spectrum	IR, visible
Interface	PoE USB
Resolution level	HD
Other characteristics	outdoor IP66 high-temperature
