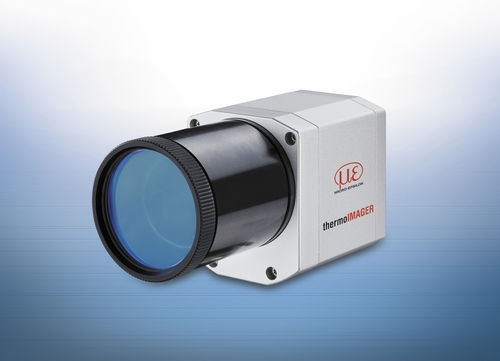

The thermoIMAGER TIM M1 thermal imaging camera is designed for non-contact temperature measurement of hot metals in the 450°C to 1800°C range. As well as the well-known advantages of thermoIMAGER infrared cameras such as their compact size, USB interface and license-free software, the new TIM M1 series offers several unique selling points. Compared to other thermal imaging cameras for metals, the temperature measuring range of 450°C to 1800°C is usable entirely and without sub-ranges. There is no need for any measuring range switchovers and the camera is significantly more flexible in its use.

The powerful sensor electronics not only enable process thermography but also the output of temperature data of the center pixel at 1kHz and so can also be used as a pyrometer. The TIM M1 thermal imaging camera is primarily used for temperature monitoring of hardening and forming processes for hot metals but also for processing graphite and ceramics.

Parameter Name	Parameter Value
Applications	rugged for the metallurgical industry for metal surfaces
Function	surveillance thermal imaging
Spectrum	infrared
Sensor	CMOS
Interface	USB
Other characteristics	compact IP67 high-temperature
