Product Introduction:

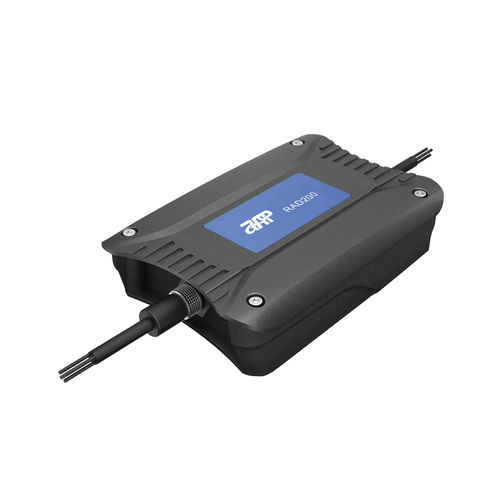

The RAD200 Rudder Angle Detector collects the yachts' rudder angle information and then transmits it to a centralized monitoring device such as the MSP700 or MSP1500 via the NMEA 2000 CAN Bus . The RAD200 is used in conjunction with a rudder angle sensor to intuitively display the real-time position of rudder angle on the Marine Smart Monitoring & Supervisory Panel . By using the RAD200 alongside with analogue displays, the user can achieve a double assurance in ensuring a safe marine navigation.
Application Field:
Used for centralized collecting and management of navigation information on the yacht.
Product Features:
● Support for NMEA 2000 communications protocol.
● Support for the standard 3-point calibration.
● Compatible with rudder angle/position sensors that have an electrical resistance range of 0 Ω – 300 Ω
● Attractive aluminum outer case, lightweight and easy to install.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured value |
rudder angle
|
| Display |
digital
|
| Type |
panel-mount
|
| Other characteristics |
|
| Applications |
for marine applications
|
