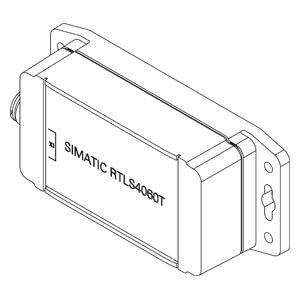

SIMATIC RTLS4060T


The SIMATIC RTLS4060T transponder is particularly suitable for locating vehicles (e.g. forklift trucks or AGVs). The external power supply enables continuous operation without changing batteries.

External power supply
An 8-pin sensor connector is available for the connection of sensors (e.g. proximity switches) and actuators (e.g. status display).
IP65
Dimensions: 151 x 66 x 43 mm

Application

The SIMATIC RTLS4060T vehicle transponder is especially suitable for locating carriers such as forklifts and driverless transport vehicles in industrial environments. Its input and output options can also be used to monitor vehicle data and control vehicle functions.

Please be sure to select the correct country-specific variant for the application in question. You can find details in the technical specifications, under standards, specifications, approval.

Parameter Name	Parameter Value
Options	IP65 RTLS external power supply
Applications	for forklift for vehicles localization industrial
Distance range	500 m (1640'05")
