Transmission rate
0~1M
Input voltage
3.15V-3.45V, 4.75V-5.25V
Isolation voltage
4kVAC
Dimension
20X17X7mm
Product Typical Feature
◆ High baud rate of up to 500Kbps
◆ Integrated isolated DC-DC converter
◆ Bus Protection
◆ Two-port isolation test voltage 3.75kVAC
◆ Operating ambient temperature range: -40℃to +85℃
◆ The bus supports maximum 256 nodes
Application Field

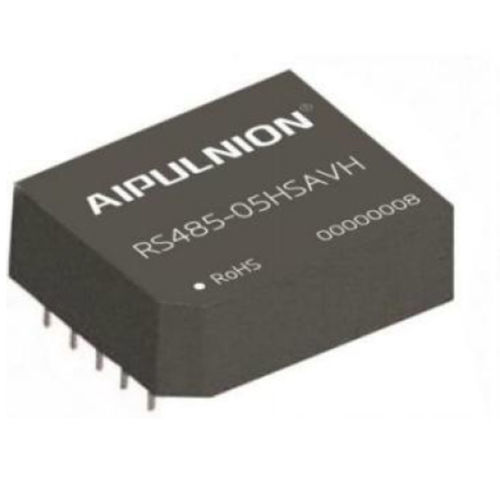

RS485-3V3HSAVH/ RS485-05HSAVHSeries are transceiver isolation module with integrated power isolation, electrical isolation, and RS485 interface bus protector; The traditional isolation RS485 circuit uses a piece of power isolation module and RS485 transceiver chip to realize the application. Now only a RS485 transceiver module could realize the functions. Simplify the customers on the isolation requirements of the design; Products can be easily embedded in the user equipment, achieve function of RS485 network connection.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Network |
RS485
|
| Applications |
data transmission
|
