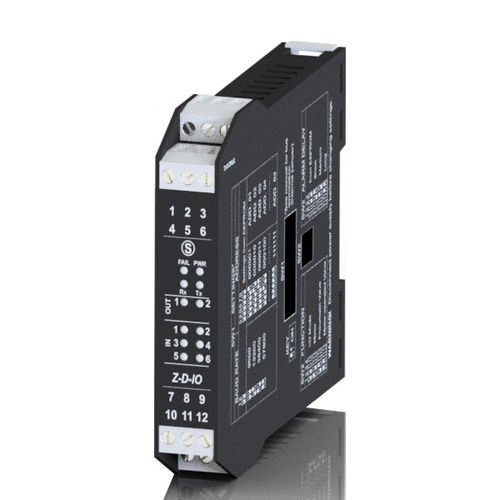

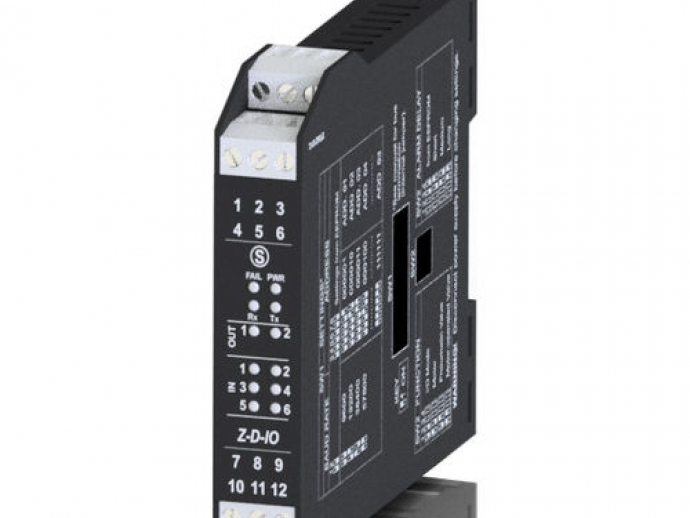

Z-D-IO has N.6 digital inputs, N.2 SPST relays, capacity of 2Aac, 250 Vac. It can be used as simple Input/Output module or, through dip-switches, is possible to acticate special functions to drive motors, pneumatic and motorised valves.The module is ModBUS Slave and can be coupled with any ModBUS Master device. A 3-way galvanic isolation among Power supply // output // RS485 circuits assures the integrity of your datas.

Power supply: - 10..40 Vdc, 19..28 Vac
Insulation: - 1,5 kVac (input/other circuits), 3,75 kVac (output/other circuits)
Input: - 6-CH reed, proximity, pnp, npn, contact etc.
Output: - 2-CH relay 5 A, 250 Vac
Operating mode: - I/O slave, time based control logic
Control logic: - IEC 61131-2 type 1 motor control, valves, limit switch, alarms
Protocol: - ModBUS RTU slave

Parameter Name	Parameter Value
Options	output RS485
Number of inputs/outputs	8-I/O, 2-O, 6-I
