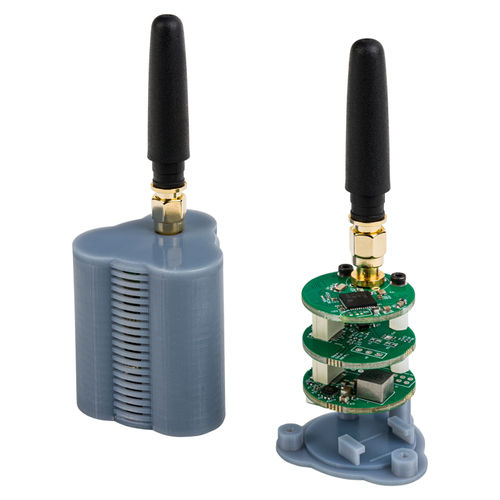

Tiny transmitters that provide radio connectivity between the controlled assets and the Prylada IoT Gateway.

Operating principle

The PryladaRF Beacons connect directly to sensors embedded with your physical assets. The data from the assets is transferred via a radio channel to the Prylada IoT Gateway equipped with the PryladaRF Shield.

The beacons can handle equally one sensor and a multi-subordinate network, thus expanding potential Prylada coverage for both area and number of sensors. With such implementation option, you can avoid bundles of wired over your facilities and simplify the monitoring processes

Features

Radio interface, 868 MHz and 915 MHz frequency

Star/mesh network topology

Remote setup via the Prylada Cloud

Industrial interfaces RS232, RS485, I2C, SDI12

Network scalability up to 100 sensors

Available interfaces

I2C

Data transfer rate up to 400 rb/s
SMBUS master/subordinate support, up to 100 kbps
Operating power-supply voltage range of 2V to 15V
Longer cables due to bus capacitance of 4000pF

RS485

MODBUS RTU master/subordinate support, up to 115200 bps
Software switchable 120 Ohm termination

RS232

Data transfer rate up to 115200 bps

SDI12

Master support

Parameter Name	Parameter Value
Network	RS232 RS485 network IP Gateway Modbus RTU
Specifications	data
