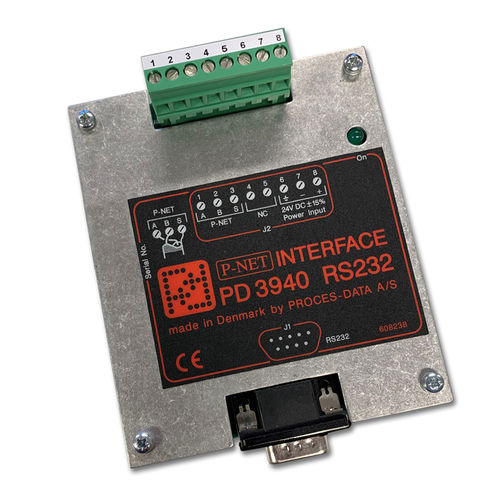

Communication module with P-NET interface and RS232 port. Used for communication with printers, barcode readers and other equipment without P-NET interface. PD 3940 is a P-NET slave and is thus controlled by a P-NET master. Mounted in IP 53 box.

Supply voltage: 24 V DC.

P-NET Fieldbus Communication, European standard EN 50170, Vol. 1.
RS232 port (9 pin male).
Integrates RS232 devices with P-NET
Fully configurable via P-NET.
Baud rates from 300 to 76,800.
Standard RS232 handshake signals.
Galvanically isolated com. ports.
Full duplex communication.
Dynamic buffer size.

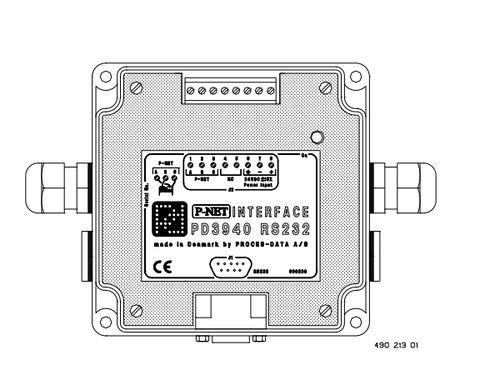

IP53 mounting box.
Panel mount facilities.
EMC approved (89/336/EEC).

The PD 3940 is a communication module, providing an interface from the P-NET fieldbus to
RS232 devices, such as printers, card-readers, barcode readers and other equipment not having built-in fieldbus facilities for P-NET. This enables such devices to be integrated into a P-NET fieldbus system. It can be used in conjunction with the varied collection of distributed P-NET input/output and control modules, which provide digital, analog, flow and weighing facilities.

Application examples:
Printer interface, for printout of tickets, alarms and reports.
Card-reader interface, for entrance control.
Bar-code reader interface, for production control to track the flow of materials.

Parameter Name	Parameter Value
Type	analog digital
Bus	RS232, fieldbus
Other characteristics	isolated panel built-in
