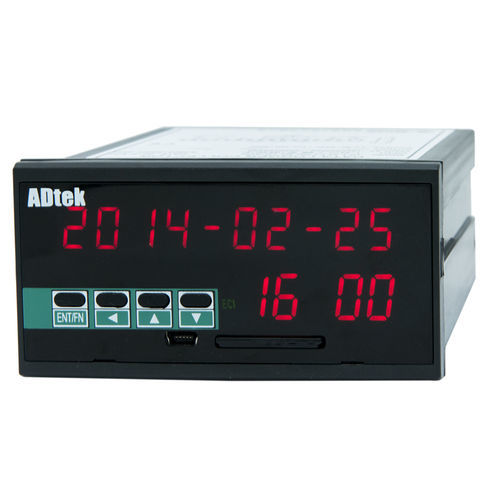

DL1S Data Logger (RS485)

DL1S is design to communicate through RS485 to read variety of devices (Such as instrumentation, PLC, A / D conversion card...) and stored the data collected into a SD card .Data can then be converted to Excel file format on a computer to perform analysis and production of related reports needed by users.

This product not only read and record data speed up to 1 seconds, and its flexible software setting allows in many ways for easy planning. For multiple projects user. After all setting on software, parameter can be upload/download to DL1S using a USB interface cable. Recording can be start by external DI contact or by meter button.

ADPro is the software provided with the hardware for setting parameters and procedures planning through the USB interface cable to the DL1S.

Today there are lots of field (such as industrial, energy, environment monitoring, commercial information...),needs record process data, providing DL1S is rather inexpensive solution compare to present industrial recorder.

DL1S give a simple, convenient and economical solution for all.

Summary of specifications:
● 1 group RS485 Master Communication port (Modbus RTU mode),can connect from 1 (standard) to 24 devices (Devices), maximum read speeds from 1 seconds
● Display window showing Multiple name tags and information
● Same loop for users to understand the recording status.
● Two external control inputs can be arbitrarily set to automatic and other related functions
● Innovative disk installation (96x48 mm), installation depth is only
● 120mm, with a variety of devices suitable for long-term record storage

Parameter Name	Parameter Value
Measured quantity	universal
Connector type	Modbus, RS-485
Display	with LED display
Other characteristics	digital programmable extended memory
