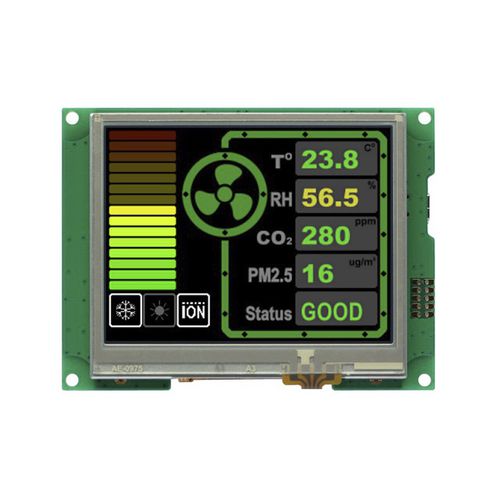

1 Basic Specification TOPWAY HMT035ATA-1C is a Smart TFT Display Module with 32bit MCU on board. Its graphics engine provides numbers of outstanding features. It supports TOPWAY TML 3.0 for preload and pre-design display module interface that simplify the host operation and development time. Suitable for industry control, instrumentation, medical electronics, power electric equipment applications.

General Specification

Screen Size(Diagonal) : 3.5 inch
Resolution :320(RGB) x 240
Color Depth : 65k color (16bit)
Pixel Configuration :RGB Stripe
Display Mode :Transmissive / Normal White
Viewing Direction : 6H (*1) (gray-scale inverse) 12H (*2)
Outline Dimension : 93.0 x 70.1 x 13.8 (max)(mm)
Active Area :70.08x 52.56(mm)
Backlight : LED
Surface Treatment :Glare Treatment(Anti-UV)
Command I/F: RS-232C
Project Download:by PC or by U-Drive (with OTG cable)
Operating Temperature :-20 ~ +70°C
Storage Temperature : -30 ~ +80°C

Major Smart Product List
HMT035ATA-1C
HMT043ATA-2C
HKT043ATA-1C
HMT050ATA-C
HKT050ATA-C
HMT056ATA-C
HMT068ATA-C
HMT070ATA-1C
HKT070DTA-1C
HMT080ATA-C
HKT080ATA-C
HMT090ATA-C
HMT101ATA-C
HKT104ATA-C

Parameter Name	Parameter Value
Type	LCD/TFT color resistive touch screen
Format	custom, compact, 320 x 240
Applications	industrial instrumentation for control panels information for gas meters
Other characteristics	RS-232 UART programmable cost-effective integrated indoor
