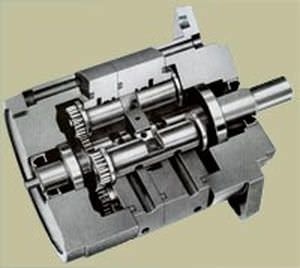

The Rol-Vane Hydraulic Motor delivers variable speed hydraulic power using its productive and compact frame. This equipment provides a Linear Output Torque using constant input pressure. Having an area constantly pressured at a specific radius, pulse-free torque is created. The machine's driving fluid provides constant lubrication for the whole system. This, together with Balanced Friction Areas, lessens friction among the components resulting in optimal stall torque, inching and fractional rpm. Using similar flow paths, symmetrical reversibility is achieved. The users can take advantage of a variety of services such as continuous, intermittent, reversed or stalled, in accordance with its load.

Parameter Name	Parameter Value
Technology	rotary vane
Pressure	Max.: 3,000 psiMin.: 0 psi
Rotational speed (rpm)	0 - 2000
Displacement	8 ml (0.27 US fl oz)
