Right rotation - Model - LFBHD
Right rotation - Code - 8711181
Speed rpm - No-load - 28000
Speed rpm - at Max Power - 15000
Torque Nm - at Max Power - 0,1
Torque Nm - Stall Torque - 0,2
Weight - Kg - 0,5

CHARACTERISTICS OF SHAPE
The normal delivery condition:

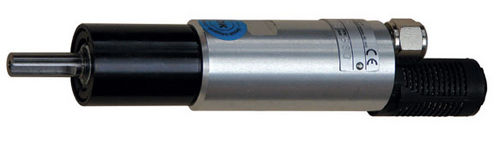

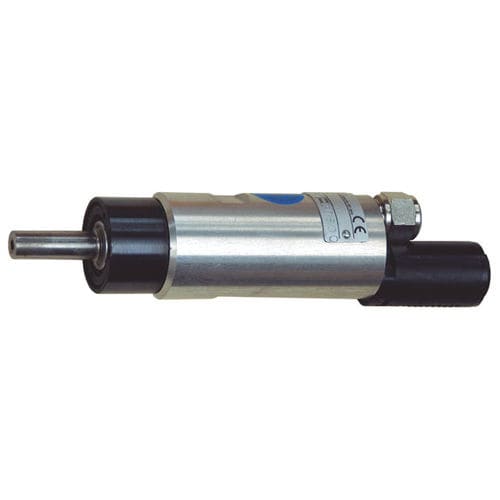

cylindrical shaft and body as shown in the photo.

Optional:
Shaft
- threaded - indication /AF (left rotation excluded - subject to checks for reversible)
- conical - indication /AC
- with collets - indication / AP

Body
- with diamond flange coupling
- with output shaft at 90°

Parameter Name	Parameter Value
Technology.	rotary vane
Torque (Nm)	0.1 - 15
Rotational speed (rpm)	230 - 28000
Power (W)	190 - 190
