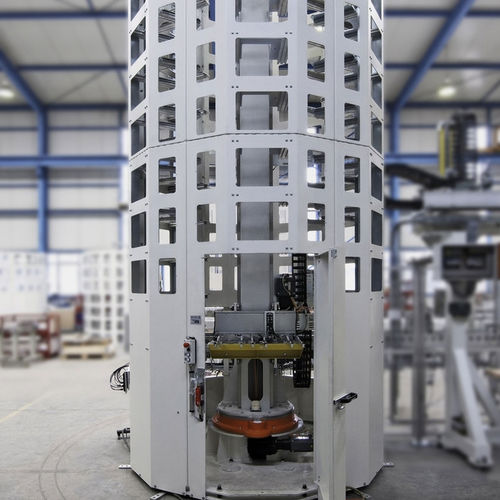

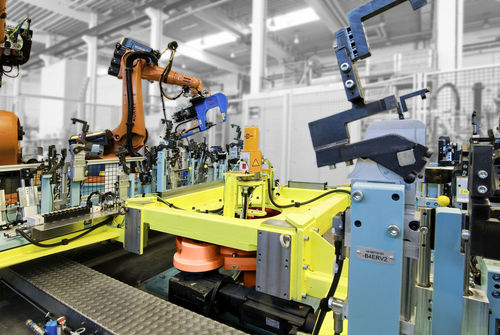

A powerhouse with an extremely large center hole and very flat design at an optimum price — the FIBROMAT heavy-load positioning tables from FIBRO. When large and heavy fixtures have to be positioned dynamically and precisely, the FIBROMAT modular heavy-load positioning table is the optimum solution. It fits perfectly into automobile body in white, as the heart of work piece storages or in honing centers, for example. The maintenance-free rotary table with lifetime lubrication is driven by reliable spur gear drive.

For the dynamic and precise positioning of large and heavy fixtures and parts
For superstructural parts up to 9500 mm
Ideal for shell and welded design applications
Deployable as a setup station, large format pallet exchanger and for general handling tasks
Available as an NC or indexing variant

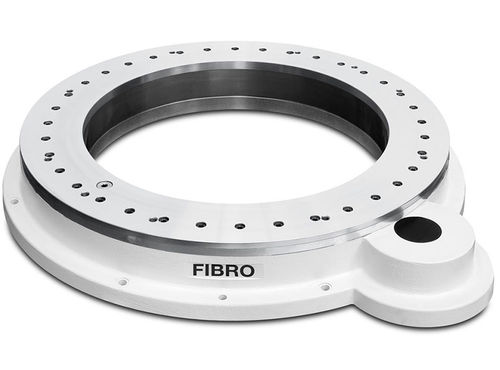

Heavy-duty positioning table with very large center hole and extremely flat design
Lubricated for life and maintenance free for highest process reliability
Perfect power cut and emergency stop behavior through drive with spur gear drive
Available with many additional options

IBROMAT®
ADDITIONAL OPTIONS

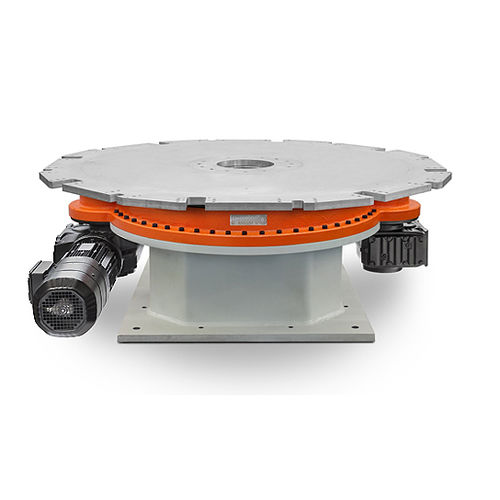

Second drive
for higher positioning accuracy and higher torque
Direct measuring system for highest positioning accuracy up to ±5"
Machine stand and adaptations, e.g., for the exchange of existing rotary tables

Expandable center hole of 200 mm
Indexing unit for increased positioning accuracy of ±15" for freely selectable angles
Position detection and over-travel protection
Media distributor and slip-ring transmitter
Special connecting dimensions and customer specific drilling templates for your individual use

Parameter Name	Parameter Value
Orientation	rotary
Type	motorized
Other characteristics	precision for heavy loads modular
