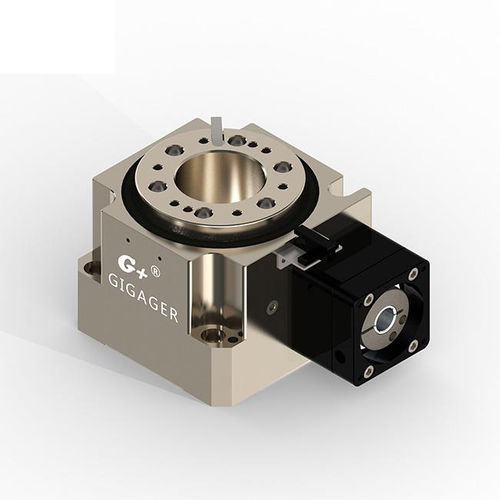

Rotary indexer GSH series

Rotary indexer GSH series

Rotary indexer GSH series

About


Hypoid Rotary Table is a kind of gearbox integrated right angle gearbox and Hypoid gears, featured with high torque, high gear ratio, high IP grade, high precision, low wear. It adopts sliding mode to rotate, the transmission precision can reach 30 arc seconds, the transmission efficiency is up to 96%; the gear geometric tolerance ≤ 0.002mm, up to JIS0 level standard. Hypoid Rotary Table also called High Torque Rotary Stage, Hypoid Hollow Rotary Stage, Right Angle Hypoid Gearbox, etc.

1. Product Features of G+ Hypoid Rotary Table?

• Right angle design

• High precision and long life

• Stable using with low noise

• Reliable and easy installation

• IP 65 waterproof

• Gear ratio 30K

• High Torque maximum 450N.m



PARAMETERS

Parameter Name Parameter Value
Motion
rotary
Applications
for machines
Other characteristics
  • programmable
  • servo-driven
