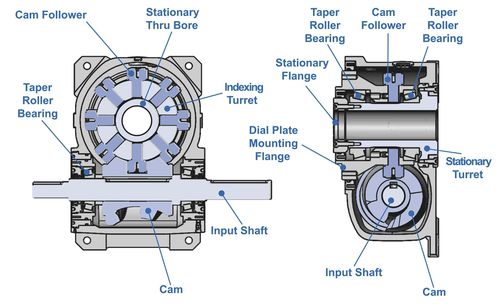

Input • Large shaft diameter & long cam length eliminates deflection during heavy loading to maintain positioning accuracy • Large shaft bearings support high speeds, larger diameters rotate less revolutions with more torque capacity • Cam is shimmed between bearing/housing to eliminate endplay, maintains accuracy • Hardened cam material reduces wear & surface flaking for longevity positioning accuracy Output • Standard units average ±9 arc second positioning accuracy with high accuracy units available • Industries largest cam diameters, high torque capacity for tooling crash survival (~30% larger) • Stationary through bore offers supply lines or wire routing & includes tolerance for bearing mounting • Stationary flange for mounting inspection tooling, part handlers or a riser above the indexing dial plate • Offset bearings support large bending moment capacity for unbalanced loading Housing • Maintenance free for life & seal with oil bath for high speed applications • Cast iron housing thermally expands at the same rate of the internal components to maintain accuracy • Housing & motor drive mounts in any angle, maintenance free • 8 housing size options, no extra cost for over-sizing with a large range of sizes Motor Drive • Geared motor drive is normally within the indexer height, no mounting plate burnouts or parallels • Standard 230 & 460 volt dual winding motors are versatile • 2 motor power options for each housing size, no extra cost for over-sizing with a large range of sizes

Parameter Name	Parameter Value
Motion	rotary
Type	globoidal cam
Applications	for machines
