Fluids
Filtered and lubricated compressed air as well as non lubricated air.

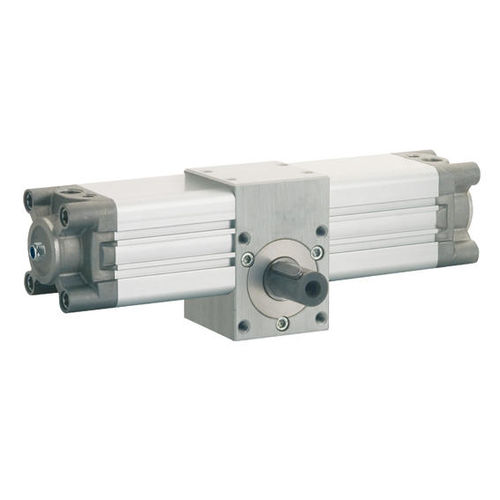

Functioning
Double-acting cushioned and magnetic with male pinion.
Double-acting cushioned and magnetic with female connection.

Parameter Name	Parameter Value
Movement	rotary
Type	pneumatic
Technology	rack-and-pinion
Configuration	double-acting
Torque (Nm)	1.2 - 26.35
Pressure	Max.: 10 bar (145 psi)Min.: 1 bar (14.5 psi)
Bore	Max.: 100 mm (3.94 in)Min.: 32 mm (1.26 in)
Rotation angle	90 °, 180 °, 270 °, 360 °
Ambient temperature	Max.: 80 °C (176 °F)Min.: -20 °C (-4 °F)
