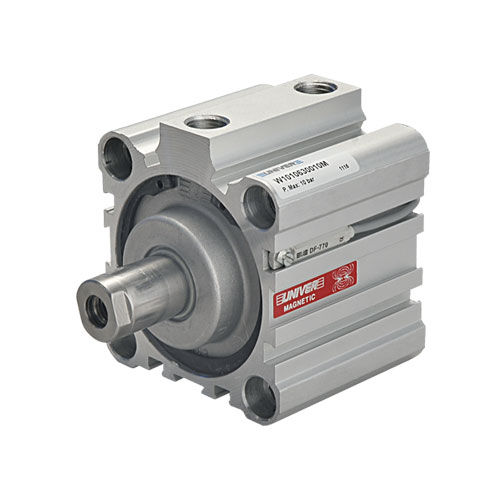

12 -100 mm - Short stroke cylinders
The wide range of versions and the project originality, make UNIVER Short stroke cylinders the only choice for them who need pneumatic cylinders with short strokes and compact dimensions.Thanks to their versatility, reliability and the different bore size availability, these cylinders are the ideal answer to the industry's demands.
TECHNICAL CHARACTERISTICS

Ambient temperature20-80°C
Fluidfiltered air. with or without lubrication
Working pressure13-10 bar
Bores12-16 - 20 - 25 - 32 - 40 - 50-63 - 80- 100 mm

CONSTRUCTIVE CHARACTERISTICS

End-capsaluminium
Barrelanodized aluminium
Pistonaluminium
Guide slideacetal ic resin
Piston rodrolled stainless steel (A1SI303)
Piston sealnitrile rubber
Guide bush for piston rodsteel structure, PTFE and sintered bronze sliding
Piston rod scraper sealpolyurethane
Shock absorber sealsnitrile rubber in both sides
Magnetplastoferrite

Parameter Name	Parameter Value
Movement	rotary
Type	pneumatic
Configuration	single-acting
Other characteristics	compact short-travel
Stroke (mm)	5 - 25
Force (N)	23 - 7360
