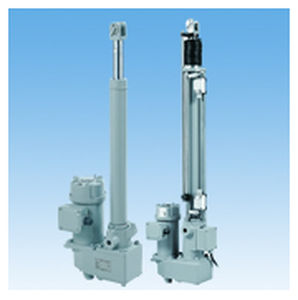

A power cylinder in the medium thrust range (more than 250kgf) that can be used with an AC power source.
This series can be used in every application with the following features: Brake motor that holds load strongly; Gear reducer that provides low-noise operation; High-efficiency ball screw developed for cylinders; Safety mechanism that protects other devices; Extensive options. Can also be used outdoors. (Motor protection level IP55)
Rated Thrust ：2.45～39.2kN
Features
・Available in two types
There are two types that have different safety mechanisms. TB Type has a built-in wet slip clutch.
The TC Type comes with a thrust detecting limit switch.
・Wide variation
A wide range of standard models are available depending on the application, thrust, and speed. You can choose the thrust from between 2.45kN and 39.2 kN, and the speed from 9mm/s and 120mm/s.
・Positive actuation
All models use a high-efficiency ball screw, quiet reducer, and reliable brake motor. In addition, a highly-reliable safety device is built into all series so as to work effectively against overload.
・Wide variety of options
Two types of stroke adjusting limit switches (external and internal types) and stroke sensors (potentiometer and rotary encoder types) are available, allowing for much easier control by a sequencer.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Movement |
rotary
|
| Type |
electric
|
| Technology |
|
| Motor |
AC
|
| Protection class |
IP55
|
| Applications |
brake
|
| Other characteristics |
|
| Stroke (mm) |
200 - 2000
|
| Force (N) |
2450 - 313000
|
| Torque (Nm) |
1.33 - 666
|
| Speed (mm/s) |
10 - 120
|
