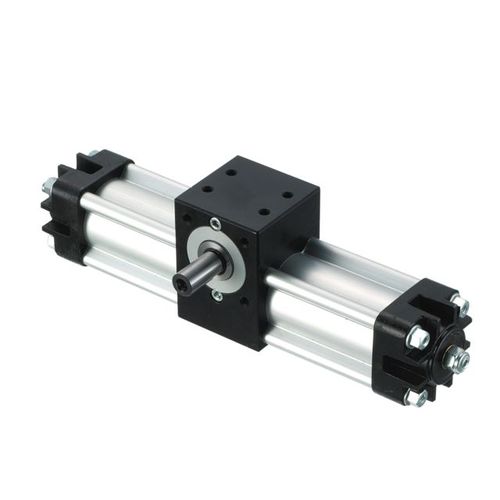

Pneumatic Rotary Actuators - WR Series

SENGA's WR series of rotary cylinders are designed to transform the linear path of the piston into a rotary path by coupling the rack and pinion.

The standard versions of these cylinders are designed for the possible installation of magnetic sensors (FM 100 series) and the adjustment of the rotation angle is possible on all models (± 5°). The WR series is available in 7 bore sizes of 32, 40, 50, 63, 80, 100 and 125 mm.

These cylinders consist of aluminium alloy heads, a tube with extruded 20 μm aluminium alloy profile, and an anodised aluminium central body...

✔ Rotary
✔ Adjustment of the rotation angle

Fluid: filtered compressed air, lubricated or not
Materials: aluminium - alloy
Rack: standard steel
Shoe: acetal resin
Deceleration pins: aluminium alloy
Piston: one-piece NBR 70 shore rubber
A Seals: NBR.
Standard rotation angles: 90°, 180°, 270°, 360° - Rotation angle adjustment: ± 5

Parameter Name	Parameter Value
Movement	rotary
Type	pneumatic
Technology	piston rack-and-pinion
Material	anodized aluminum
Applications	industrial
Pressure	Min.: 1 bar (14.5 psi)Max.: 10 bar (145 psi)
Bore	Min.: 32 mm (1.26 in)Max.: 125 mm (4.92 in)
Rotation angle	90 °, 180 °, 270 °, 360 °
Fluid temperature	Min.: -20 °C (-4 °F)Max.: 80 °C (176 °F)
