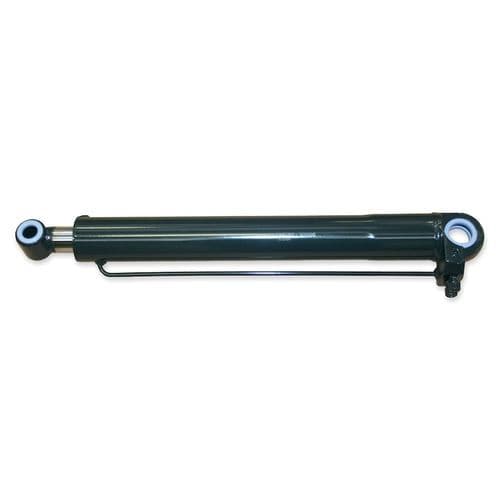

Hydraulic cylinders for IVECO cab tilting system
We manufacture single and double-acting hydraulic cylinders for the Iveco cabin tilting system.

Single and double acting hydraulic cylinders for IVECO cab tilting systems
We manufacture single and double-acting hydraulic cylinders for the Iveco cabin tilting system. The Iveco Aftermarket cylinders Series are especially designed for the Iveco line but they are applicable to any type of hydraulic system. These are the main fields of application:

in the livestock and agriculture environment: trailer bodies and lifting forks;
in the industry: guide presses, rotary tables, tank overvoltage, single and double-acting cylinder drives
in the transport: small hydraulic cranes, trucks, cab tilting, concrete mixers.
Hydraulic cylinders for IVECO cab tilting system: main features
Manual operation
Compact design
Working pressure up to 420bar
Adjustable relief valve
440 and 580 cm3 oil tanks
Temperature range -40 ° C + 80 ° C
Oil flow 4cm3 / stroke
Resistance to corrosion and atmospheric agents
Oil fill and level control cap

Parameter Name	Parameter Value
Movement	rotary
Type	hydraulic
Technology	cylinder
Configuration	double-acting
Applications	guide
Other characteristics	compact small control double
Stroke (mm)	419 - 515
Force (N)	20.7 - 46.9
Pressure	420 bar (6,091.6 psi)
Ambient temperature	Min.: -40 °C (-40 °F)Max.: 80 °C (176 °F)
