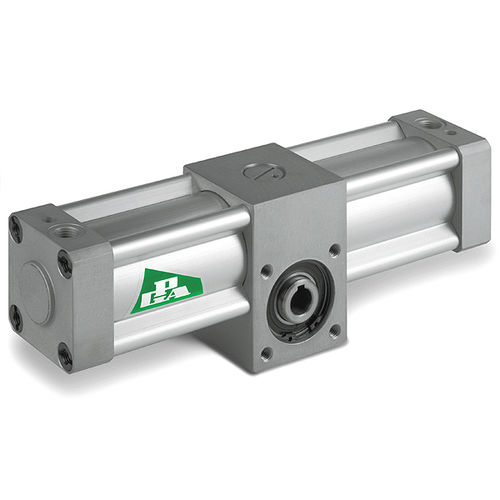

Rotating Cylinders CNRA Type
The design of this series of rotating cylinders matches the most required characteristics of the modern handling systems, such as low weight, accuracy and corrosion resistance. Therefore tubes, heads and the main body are alluminium alloy and the baklash us reduced to very low values. Three standard rotations are available: 96°-186°-366° On request special rotation angles up to 726° and rotation adjustment.

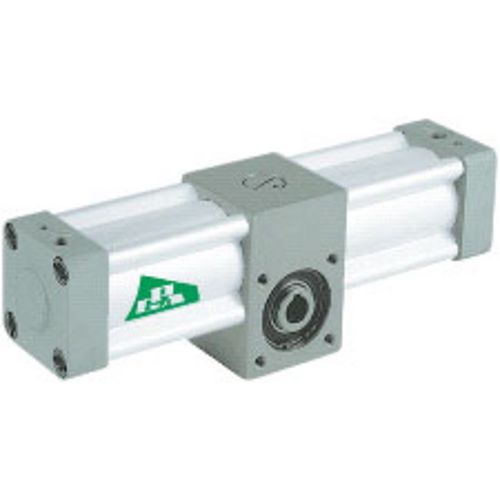

Rotating Cylinders CPRA Type
High torque and low weight with powerful construction for heavy duty and long life service are the actractive characteristics of this series of rotating cylinders. Tubes, heads and the central body are aluminium alloy. Three standard rotations are available: 96°-186°-366°. On request special rotation angles up to 726° and rotation adjustment.

Parameter Name	Parameter Value
Movement	rotary
Type	pneumatic
Technology	rack-and-pinion
Configuration	double-acting
