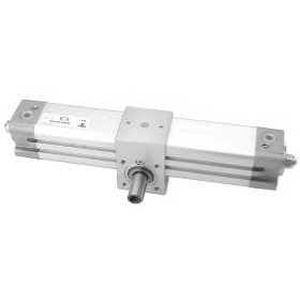

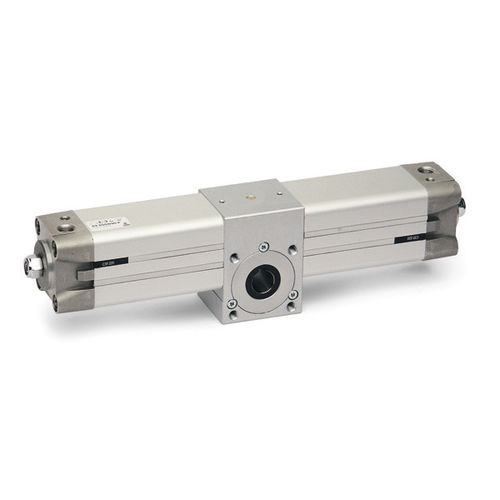

This cylinder belongs to Series 69. It has internal tie-rods and is double acting. It can be mounted using threaded holes in the central body by way of Series 60 brackets. The cylinder has bore sizes of 32, 40, 50, 63, 80, 100 and 125. It operates at temperatures of 0°C to 80°C (with dry air - 20°C) with standard rotation angles of 90°, 180°, 270° and 360°.

The cylinder operates at a pressure of 1-10 bar. It has ball bearings with a 32 mm diameter. It uses clean air fluid without lubrication. However, if lubrication is used then ISOVG32 oil is recommended. The lubrication should never be interrupted once applied.

Parameter Name	Parameter Value
Movement	rotary
Type	pneumatic
Technology	magnetic piston tie-rod rack-and-pinion
Configuration	double-acting
Material	aluminum
Other characteristics	with adjustable cushions clean design
Force (N)	100 - 300
Torque (Nm)	1.2 - 510
Pressure	Max.: 10 bar (145 psi)Min.: 1 bar (14.5 psi)
Bore	Max.: 125 mm (4.92 in)Min.: 32 mm (1.26 in)
Rotation angle	Max.: 360 °Min.: 90 °
